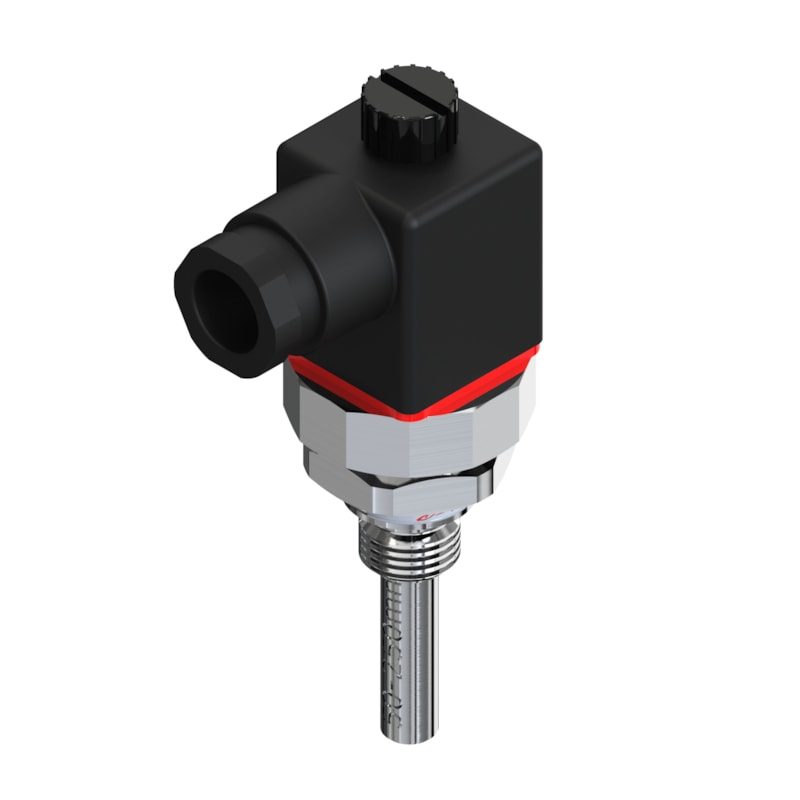

Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 40 mm insertion, M14x1.5 process connection (code 084Z7195)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 heavy-duty insertion sensor with exchangeable Pt 100 insert, 40 mm insertion, an M14x1.5 fitting and an angular DIN plug connector, code 084Z7195 (type designation MBT 5250-0000-040-6C0). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 40 mm insertion; M14x1.5 (ISO 965) process connection; AISI 316 Ti stainless steel, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: Angular connector, Pg 11 (EN 175301-803-A). Enclosure IP65 per IEC 60529. CE marked. Exchangeable Pt 100 insert; angular connector to EN 175301-803-A (Pg 11).
Specifications
- Part number
- 084Z7195
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 40 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 5250 insertion sensor. Confirm insertion length (40 mm insertion), process thread (M14x1.5) and element (Pt 100 100 ohm) match the pocket and controller input. The measuring insert is field-replaceable.
Standards
- EN 60751
- ISO 965
- EN 175301-803-A
- IEC 60529
Approvals
