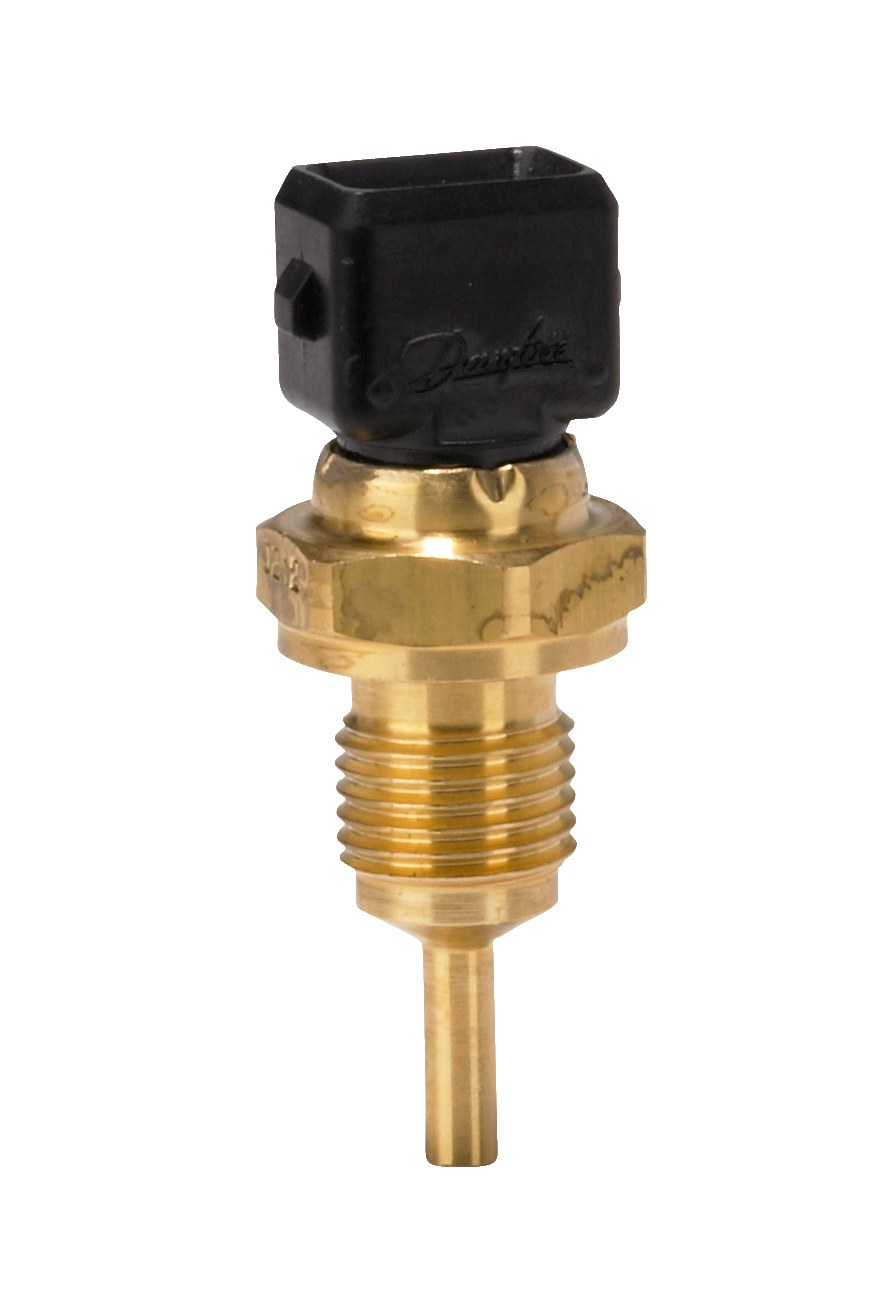

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 22 mm insertion, G 1/4 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact refrigeration and air-conditioning sensor with a brass pocket, G 1/4 fitting and an AMP Junior Power Timer 2-pin connector, code 084Z7138 (type designation MBT 3270-10000-022-00201-013). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 22 mm insertion; G 1/4 (ISO 228-1-A) process connection; Brass, 4.5 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: AMP Junior Power Timer, 2-pin (0.13 m silicone lead); cable temperature range -60 to +200 C. Enclosure IP67 per IEC 60529. CE marked. Brass protection tube; AMP Junior Power Timer 2-pin connector; IP67.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-10000-022-00201-013
- Code number
- 084Z7138
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 22 mm insertion
- Process connection
- G 1/4 male (ISO 228-1-A)
- Protection tube
- Brass, 4.5 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- AMP Junior Power Timer, 2-pin (0.13 m silicone lead); cable temperature range -60 to +200 C
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 30 pc
- Net weight
- 0.05 kg
- Approvals
- CE
- EAN
- 5702423188628
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- Cable length [in]
- 5.1 in
- Cable length [m]
- 0.13 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Brass
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 0.866 in
- Insertion length [mm]
- 22 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Brass
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.177 in
- Protection tube diameter [mm]
- 4.5 mm
- Protection tube material
- BRASS
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 22 mm insertion
- Material
- Brass
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 insertion sensor. Confirm insertion length (22 mm insertion), process thread (G 1/4) and element (Pt 100 100 ohm) match the pocket and controller input.
