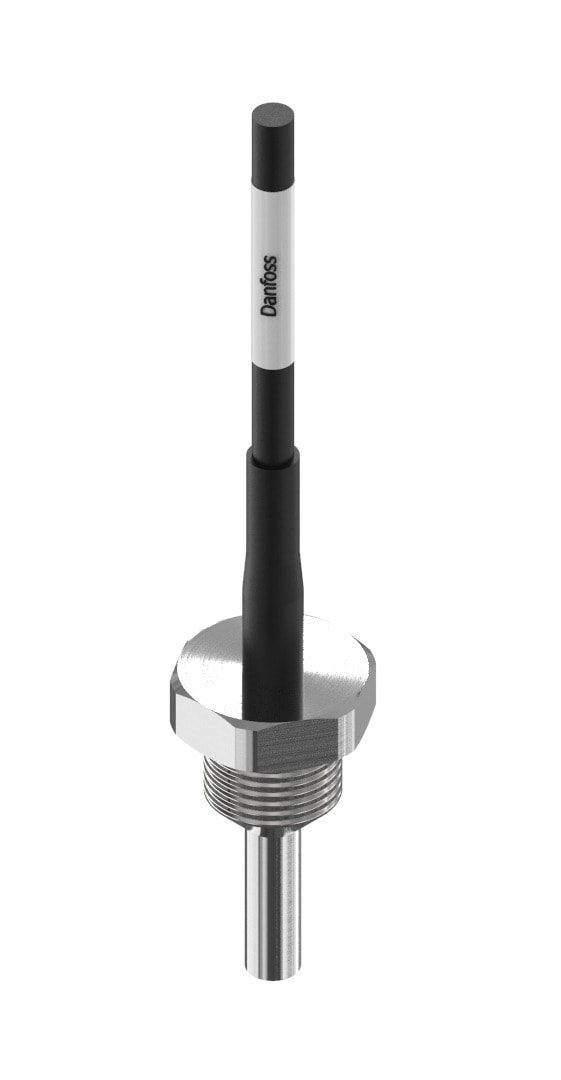

Danfoss MBT 3270 temperature sensor, Pt 1000 1000 ohm, 35 mm insertion, M16X1.5 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact refrigeration and air-conditioning insertion sensor with a Pt 1000 element, M16x1.5 fitting and a 2 m silicone cable, code 084Z7119 (type designation MBT 3270-12001-035-50001-200). Standardized Pt 1000 platinum resistance (1000 ohm at 0 C), Class B per EN 60751. Insertion length 35 mm insertion; M16x1.5 (ISO 965) process connection; AISI 316 Ti stainless steel, 6.5 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: Cable, 2-wire, 2 m (silicone); cable temperature range -60 to +200 C. Enclosure IP54 per IEC 60529. CE marked. Pt 1000 element; 2 m silicone cable; compact refrigeration/AC insertion sensor.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-12001-035-50001-200
- Code number
- 084Z7119
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 35 mm insertion
- Process connection
- M16x1.5 male (ISO 965)
- Protection tube
- AISI 316 Ti stainless steel, 6.5 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 2-wire, 2 m (silicone); cable temperature range -60 to +200 C
- Enclosure rating
- IP54 per IEC 60529
- Packing quantity
- 20 pc
- Net weight
- 0.103 kg
- Approvals
- CE
- EAN
- 5702423186679
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- Cable length [in]
- 79 in
- Cable length [m]
- 2 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.38 in
- Insertion length [mm]
- 35 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 16x1.5
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.256 in
- Protection tube diameter [mm]
- 6.5 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 35 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 insertion sensor. Confirm insertion length (35 mm insertion), process thread (M16x1.5) and element (Pt 1000 1000 ohm) match the pocket and controller input.
