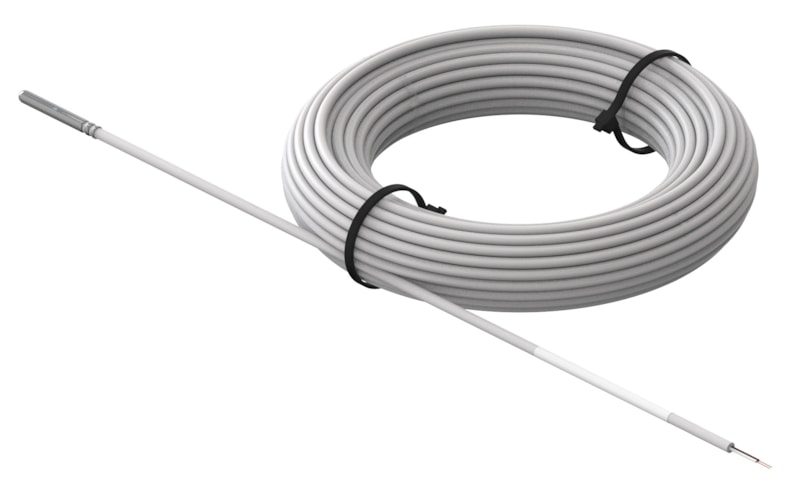

Danfoss MBT 353 cable temperature sensor, Pt 1000, 20 m cable, variable insertion
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 353 cable temperature sensor, code 084Z3225 (type designation MBT 353-0000-10-0200-1). Submersible/variable-insertion RTD with a 20 m moulded connection cable for tank, duct and immersion measurement. Pt 1000 platinum resistance element (1000 ohm at 0 C), Class B tolerance per EN 60751. Measuring range 0 to +70 C (32 to 158 F); resistance (ohm) output, 2-wire; 3.5 mm diameter protection tube; TPV-E-FDA cable, 20 m length; IP68 enclosure. Supplied in a 24-piece industrial pack. CE marked.
Technical Specifications
- Type
- MBT 353 (cable / variable-insertion temperature sensor)
- Type designation
- MBT 353-0000-10-0200-1
- Code number
- 084Z3225
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Measuring range
- 0 to +70 C (32 to 158 F)
- Cable length
- 20 m
- Cable type
- TPV-E-FDA
- Electrical connection
- Cable, 2-wire
- Output signal
- Ohm (resistance)
- Protection tube diameter
- 3.5 mm
- Enclosure rating
- IP68
- Insertion type
- Variable
- Packing quantity
- 24 pc
- Net weight
- 0.187 kg
- Approvals
- CE
- EAN
- 5702423269563
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 787 in
- Cable length [m]
- 20 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- Protection tube diameter [in]
- 0.138 in
- Protection tube diameter [mm]
- 3.5 mm
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 70 °C
- Temperature range [°C] [min]
- 0 °C
- Temperature range [°F] [max]
- 158 °F
- Temperature range [°F] [min]
- 32 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 20 m cable
- Temperature Range
- 0 to +70 C (32 to 158 F)
- HS Code
- 9025.19
Compatibility & Fitment
Confirm the insertion length (undefined), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Product Documentation
