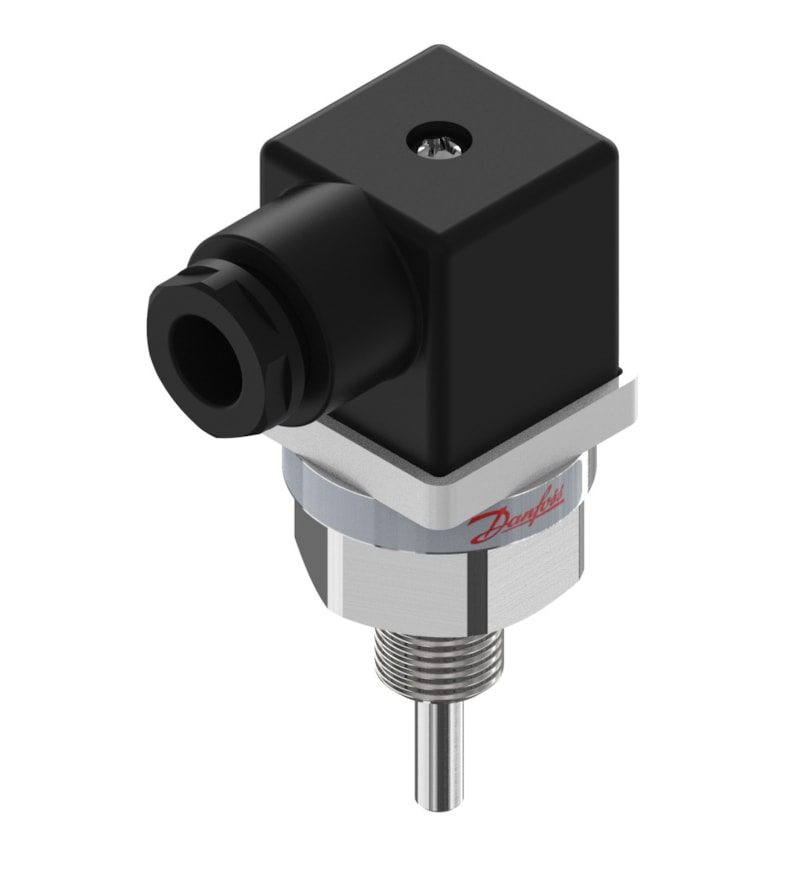

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 30 mm insertion, G 1/4 process connection (code 084Z7103)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact temperature sensor, code 084Z7103 (type designation MBT 3270-30001-030-00730-000). Fixed insertion RTD for refrigeration and air-conditioning plant. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 30 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 5 mm diameter. Measuring range -50 to +120 C (-58 to +248 F). Angular connector, Pg 9 (EN 175301-803-A); IP54 enclosure. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact insertion temperature sensor)
- Type designation
- MBT 3270-30001-030-00730-000
- Code number
- 084Z7103
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 30 mm
- Process connection
- G 1/4 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 5 mm diameter
- Measuring range
- -50 to +120 C (-58 to +248 F)
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Enclosure rating
- IP54
- Packing quantity
- 20 pc
- Net weight
- 0.094 kg
- Approvals
- CE
- EAN
- 5702423186563
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.18 in
- Insertion length [mm]
- 30 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 120 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 248 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Output signal
- Ohm
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.197 in
- Protection tube diameter [mm]
- 5 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 30 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +120 C (-58 to +248 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. Confirm insertion length (30 mm), thread (G 1/4) and Pt 100 element match the controller input. Fixed (non-exchangeable) element.
