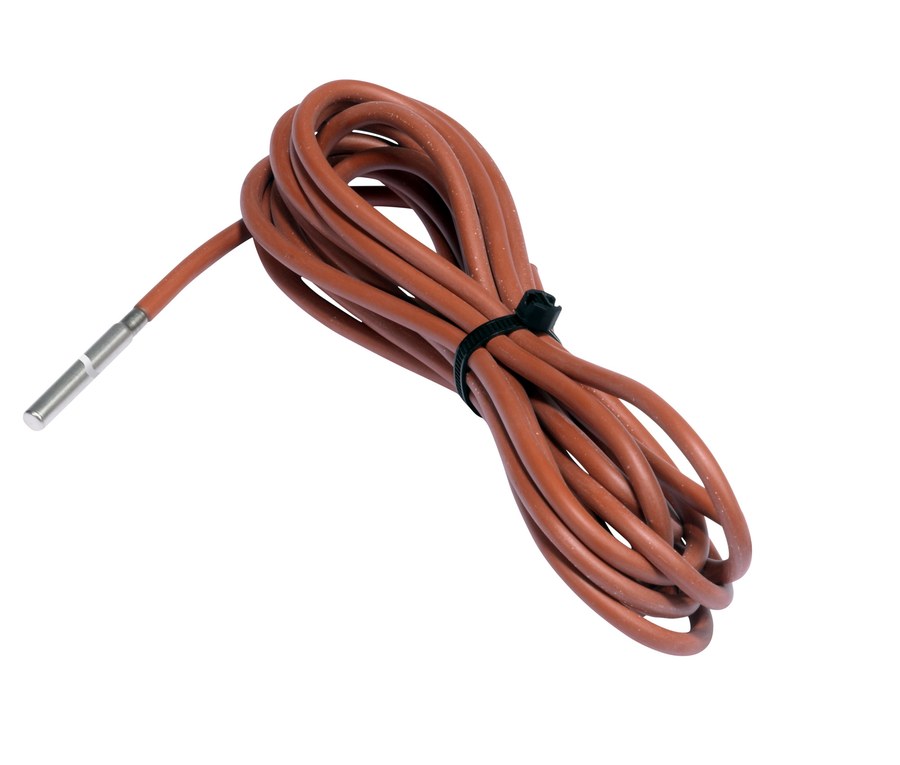

Danfoss MBT 153 temperature sensor, Pt 100 100 ohm, 6 mm probe with 10 m connecting cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 153 cable-type temperature sensor with a fixed 10 m connecting cable for cooling water, oil and refrigeration circuits, code 084Z7022 (type designation MBT 153-2002-1000). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. AISI 305 stainless-steel probe, 6 mm diameter, with a fixed 10 m connecting cable (no threaded process connection). Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: Cable, 4-wire; cable temperature range -60 to +200 C. Enclosure IP68 per IEC 60529. CE marked. 4-wire cable-connected sensor with an IP68 sealed AISI 305 protection tube.
Technical Specifications
- Type
- MBT 153 (temperature sensor)
- Type designation
- MBT 153-2002-1000
- Code number
- 084Z7022
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Cable
- 10 m cable
- Protection tube
- AISI 305 stainless steel, 6 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 4-wire; cable temperature range -60 to +200 C
- Enclosure rating
- IP68 per IEC 60529
- Packing quantity
- 8 pc
- Net weight
- 0.315 kg
- Approvals
- CE
- EAN
- 5702423167524
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 394 in
- Cable length [m]
- 10 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 305
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 10 m cable
- Material
- AISI 305 stainless steel
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP68
- HS Code
- 9025.19
Compatibility & Fitment
MBT 153 insertion sensor. Confirm insertion length (10 m cable), process thread (null) and element (Pt 100 100 ohm) match the pocket and controller input.
