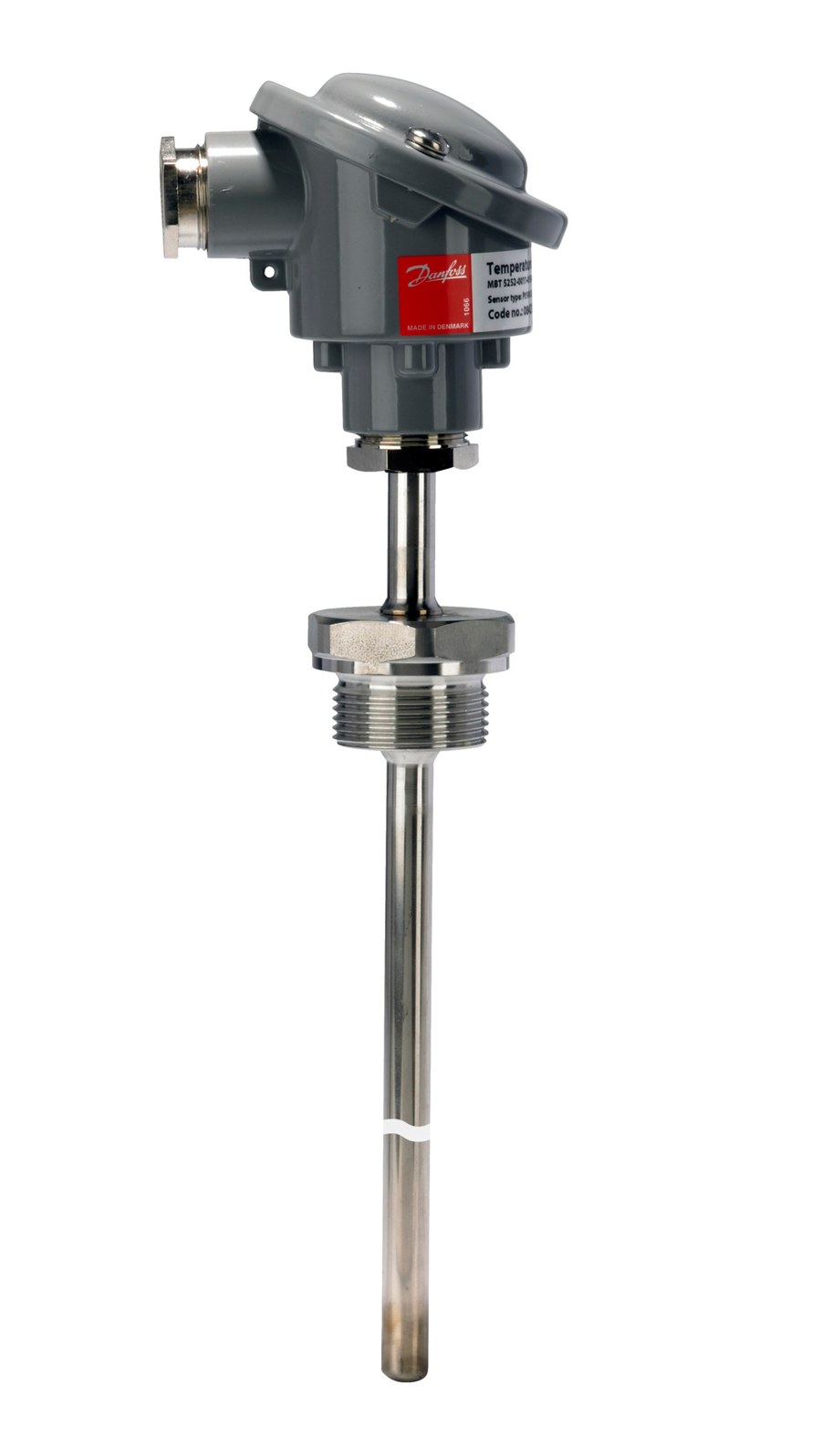

Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 150 mm insertion, G 1/2 process connection (code 084Z7055)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5252 heavy-duty transmitter with exchangeable Pt 100 insert and 4-20 mA output, factory-scaled -50 to +50 C, 150 mm insertion, code 084Z7055 (type designation MBT 5252-0011-0150-0200-G405). Element: Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 150 mm insertion; G 1/2 (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 10 mm diameter. Measuring/temperature span -50 to +200 C (-58 to +392 F); output 4-20 mA (measuring range -50 to +50 C; supply 8-35 V DC). Electrical connection: Type B connection head, Pg 16. Enclosure IP65 per IEC 60529. CE marked. Exchangeable Pt 100 insert; transmitter setting range -50 to +50 C.
Technical Specifications
- Type
- MBT 5252 (temperature transmitter)
- Type designation
- MBT 5252-0011-0150-0200-G405
- Code number
- 084Z7055
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 150 mm insertion
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 10 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Output signal
- 4-20 mA (measuring range -50 to +50 C; supply 8-35 V DC)
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 6 pc
- Net weight
- 0.423 kg
- Approvals
- CE
- EAN
- 5702423184033
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 5.9 in
- Insertion length [mm]
- 150 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 50 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 122 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.394 in
- Protection tube diameter [mm]
- 10 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 50 °C
- Transmitter setting range [°C] [min]
- -50 °C
- Transmitter setting range [°F] [max]
- 122 °F
- Transmitter setting range [°F] [min]
- -58 °F
- Transmitter type
- Standard
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 150 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5252 temperature transmitter. Confirm the measuring span, output (4-20 mA (measuring range -50 to +50 C; supply 8-35 V DC)) and supply voltage suit the input; verify insertion length (150 mm insertion) and process thread (G 1/2) against the pocket/controller. The measuring insert is field-replaceable.
