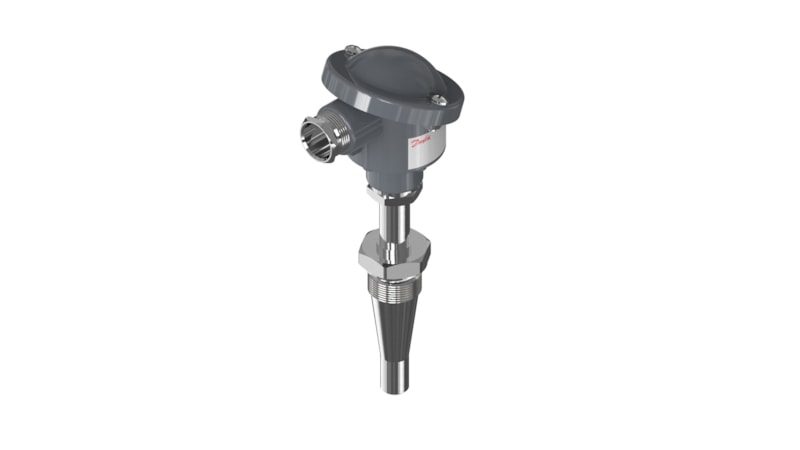

Danfoss MBT 5113 high-temperature sensor, thermocouple NiCr-Ni Type K, 300 mm insertion, G 3/4 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5113 high-temperature sensor, code 084Z7014 (type designation MBT 5113-B001-300-10-0000). Thermocouple insertion sensor for exhaust-gas, flue and other high-temperature duties in marine and industrial plant. One NiCr-Ni Type K thermocouple element (millivolt output). Insertion length 300 mm plus 50 mm extension; G 3/4 male (AISI 316 Ti) process connection; AISI 316 Ti protection tube, 14-24 mm diameter. Measuring range -50 to +800 C (-58 to +1472 F). Type B connection head; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5113 (high-temperature thermocouple insertion sensor)
- Type designation
- MBT 5113-B001-300-10-0000
- Code number
- 084Z7014
- Sensor element
- 1 x NiCr-Ni thermocouple, Type K (mV output)
- Insertion length
- 300 mm (plus 50 mm extension)
- Process connection
- G 3/4 male (AISI 316 Ti), ISO 228-1-A
- Protection tube
- AISI 316 Ti stainless steel, 14-24 mm diameter
- Measuring range
- -50 to +800 C (-58 to +1472 F)
- Electrical connection
- Type B connection head (2-wire)
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 10 pc
- Net weight
- 0.977 kg
- Approvals
- CE
- EAN
- 5702423181360
- Product group
- Sensors
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 11.8 in
- Insertion length [mm]
- 300 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 2 pc
- Output signal
- mV
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 3/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor element standard
- EN 60584-2
- Sensor element tolerance
- Class 2
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 800 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1472 °F
- Temperature range [°F] [min]
- -58 °F
- Thermocouple
- 1 X NiCr-Ni, Type K
- Thermocouple design std.
- EN 61515
- Thermocouple tolerance
- EN 60584-2 Class 2
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 300 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +800 C (-58 to +1472 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5113 thermocouple sensor. Confirm the Type K (NiCr-Ni) characteristic matches the transmitter/controller input, plus insertion length (300 mm) and thread (G 3/4). Millivolt output — do not wire as an RTD.
