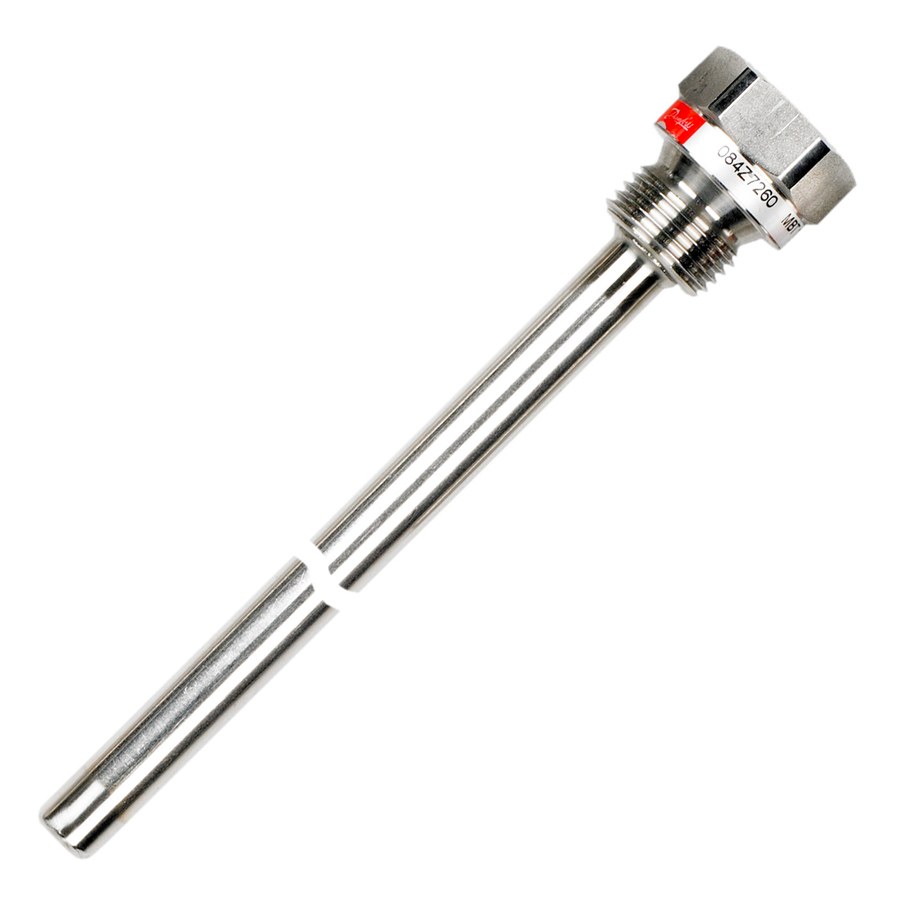

Danfoss MBT 120 sensor pocket (thermowell), 150 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z7260)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket, code 084Z7260 (type designation MBT 120-630-150-3). Stainless-steel thermowell that holds an MBT 3560 or MBT 5560 temperature sensor, allowing the sensor to be removed and refitted without draining the system. AISI 316 Ti protection tube, 11 mm diameter; G 1/2 male (ISO 228-1-A) process connection; insertion length 150 mm. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Technical Specifications
- Type
- MBT 120 (sensor pocket / thermowell)
- Type designation
- MBT 120-630-150-3
- Code number
- 084Z7260
- Function
- pocket for MBT 3560 / MBT 5560 temperature sensor
- Insertion length
- 150 mm
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 11 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 20 pc
- Net weight
- 0.117 kg
- Approvals
- CE
- EAN
- 5702423201402
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 5.9 in
- Insertion length [mm]
- 150 mm
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.433 in
- Protection tube diameter [mm]
- 11 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 3560, MBT 5560
Standards & Compliance
- Size / Series
- 150 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket for MBT 3560 / MBT 5560 sensors. Confirm insertion length (150 mm) and thread (G 1/2) suit the installation and that the paired sensor stem fits the 11 mm pocket bore.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 36-48 mm insertion, G 1/2 process connection
084Z7280
Danfoss
Danfoss MBT 153 temperature sensor, Pt 100 100 ohm, 6 mm probe with 10 m connecting cable
084Z7022
Danfoss
Danfoss MBT 5113 temperature transmitter, Type K thermocouple (NiCr-Ni), 110 mm insertion, G 3/4 process connection
084Z7032
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 50 mm insertion, NPT 1/2-14 process connection
084Z7034
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 150 mm insertion, G 1/2 process connection (code 084Z7055)
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 150 mm insertion, G 1/2 process connection (code 084Z7063)
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 310 mm insertion, G 1/2 process connection
084Z7074
Danfoss

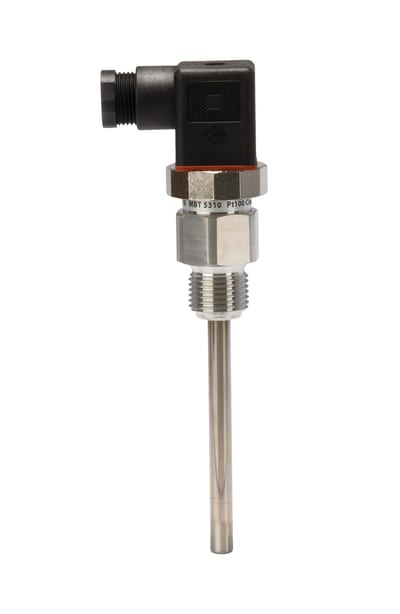

Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 88-100 mm adjustable insertion, G 1/2 process connection
