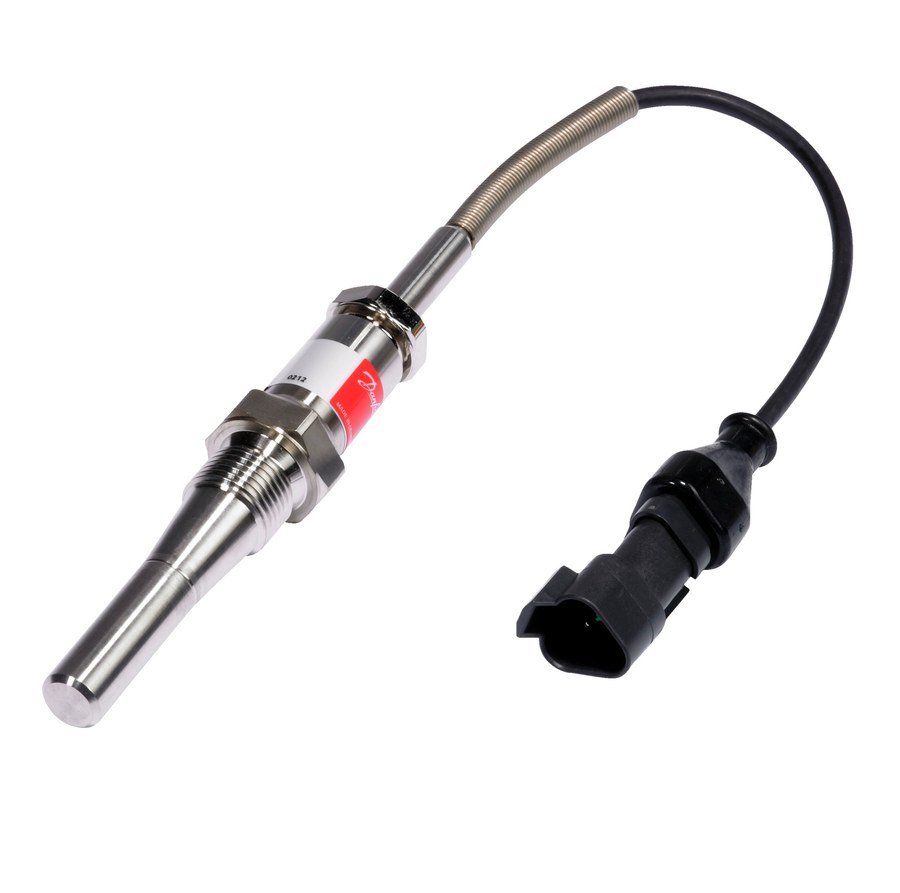

Danfoss MBT 5116 high-temperature sensor, Pt 100 100 ohm, 80 mm insertion, G 1/2, Deutsch DT04 3-Pin
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 high-temperature sensor, code 084Z7253 (type designation MBT 5116-C000-080-0113-030). Exchangeable Pt 100 element insertion sensor for high-temperature duties. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 80 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 14-24 mm diameter. Measuring range -50 to +600 C (-58 to +1112 F). Deutsch DT04 3-pin connector; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5116 (high-temperature insertion sensor, exchangeable Pt element)
- Type designation
- MBT 5116-C000-080-0113-030
- Code number
- 084Z7253
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 80 mm
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 14-24 mm diameter
- Measuring range
- -50 to +600 C (-58 to +1112 F)
- Electrical connection
- Deutsch DT04, 3-pin
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 9 pc
- Net weight
- 0.3 kg
- Approvals
- CE
- EAN
- 5702423211753
- Product group
- Sensors
- Ambient temperature max. [°C]
- 75 °C
- Ambient temperature max. [°F]
- 167 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Slim-line
- Electrical connection size
- 3 pin
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.15 in
- Insertion length [mm]
- 80 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Output signal
- Ohm
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 80 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +600 C (-58 to +1112 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5116 high-temperature sensor. Confirm the Deutsch DT04 3-pin mating connector, insertion length (80 mm), thread (G 1/2) and Pt 100 element match the harness and controller input. The measuring insert is field-replaceable.
Product Documentation
More from Danfoss
Danfoss

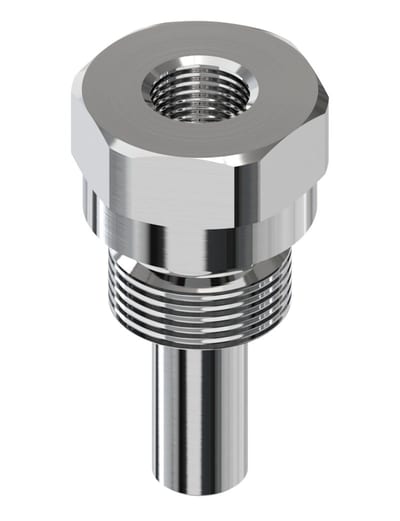

Danfoss MBT 120 sensor pocket (thermowell), 50 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z7258)
Danfoss

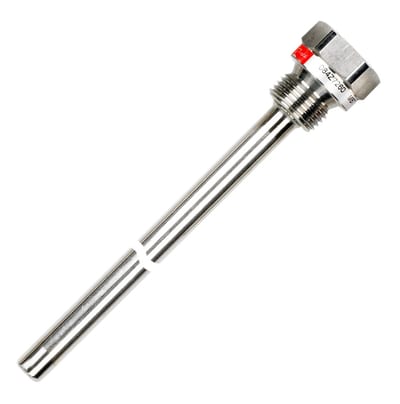

Danfoss MBT 120 sensor pocket (thermowell), 150 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z7260)
Danfoss

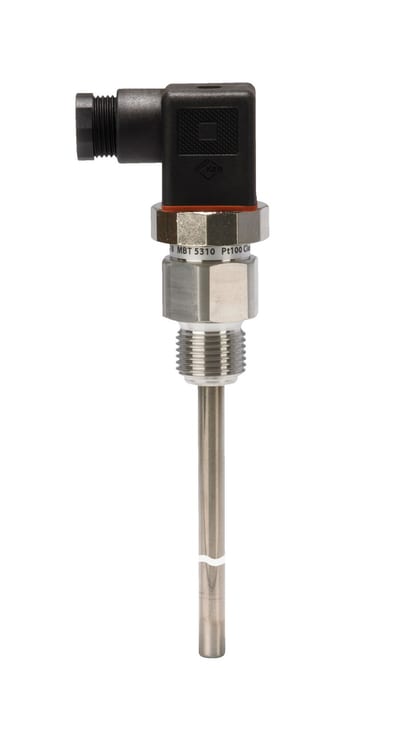

Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 36-48 mm insertion, G 1/2 process connection
084Z7280
Danfoss

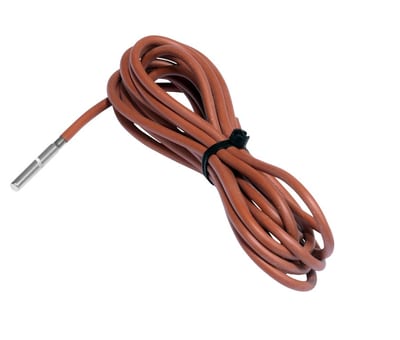

Danfoss MBT 153 temperature sensor, Pt 100 100 ohm, 6 mm probe with 10 m connecting cable
084Z7022
Danfoss

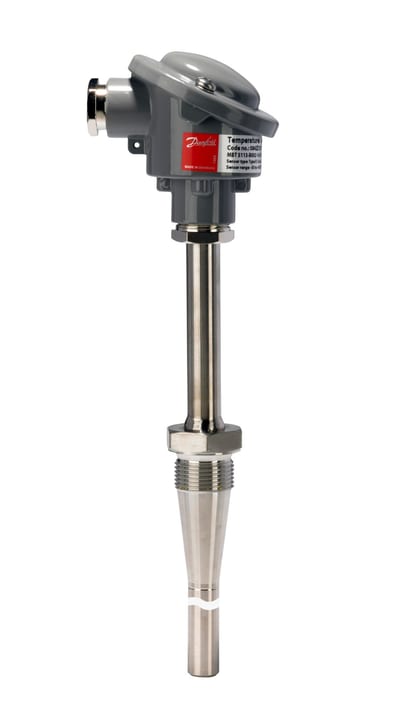

Danfoss MBT 5113 temperature transmitter, Type K thermocouple (NiCr-Ni), 110 mm insertion, G 3/4 process connection
084Z7032
Danfoss

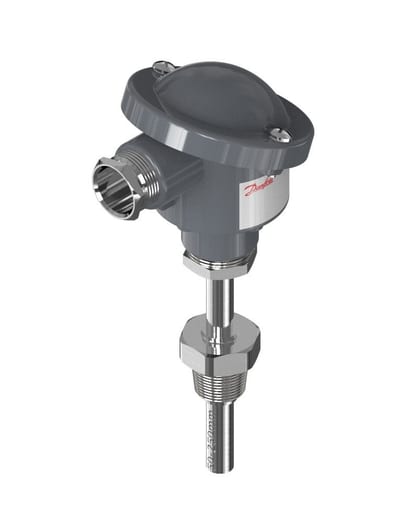

Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 50 mm insertion, NPT 1/2-14 process connection
084Z7034
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 150 mm insertion, G 1/2 process connection (code 084Z7055)
Danfoss

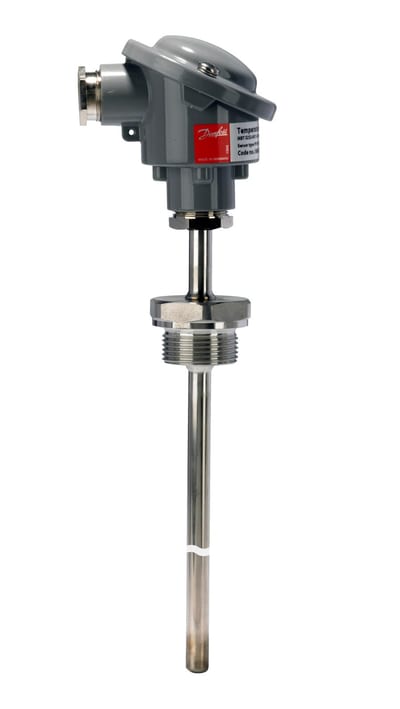

Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 150 mm insertion, G 1/2 process connection (code 084Z7063)
