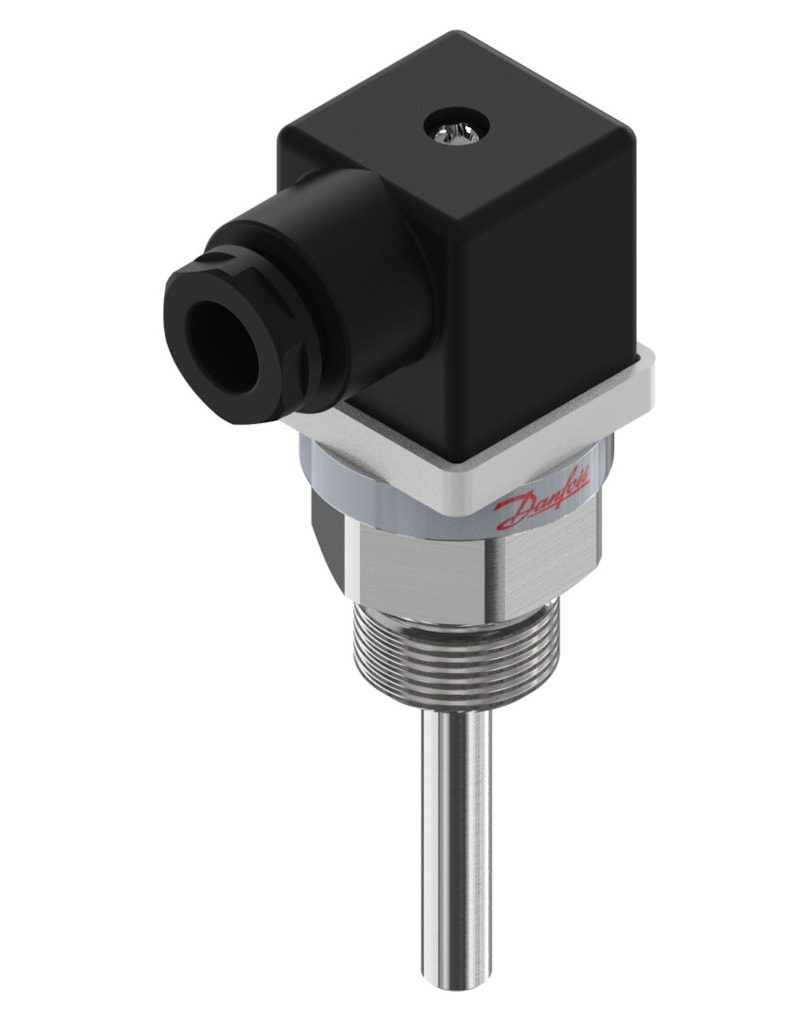

Danfoss MBT 3270 temperature sensor, PTC 60 ohm, 53 mm insertion, G 1/2 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact temperature sensor, code 084Z7250 (type designation MBT 3270-0B500-053-20600-000). Fixed insertion sensor for refrigeration and air-conditioning plant. PTC element, 60 ohm, +/-5 C tolerance. Insertion length 53 mm; G 1/2 male (ISO 228-1-A) brass process connection; brass protection tube, 6.5 mm diameter. Measuring range -50 to +150 C (-58 to +302 F). Angular connector, Pg 9 (EN 175301-803-A); IP54 enclosure. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact insertion temperature sensor)
- Type designation
- MBT 3270-0B500-053-20600-000
- Code number
- 084Z7250
- Sensor element
- PTC, 60 ohm
- Tolerance
- +/-5 C
- Insertion length
- 53 mm
- Process connection
- G 1/2 male (ISO 228-1-A), brass
- Protection tube
- brass, 6.5 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Enclosure rating
- IP54
- Packing quantity
- 20 pc
- Net weight
- 0.124 kg
- Approvals
- CE
- EAN
- 5702423200245
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Brass
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.09 in
- Insertion length [mm]
- 53 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Output signal
- Ohm
- Process connection Male/Female
- Male
- Process connection material
- Brass
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.256 in
- Protection tube diameter [mm]
- 6.5 mm
- Protection tube material
- BRASS
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 60 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 5 °C
- Sensor element type
- PTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 53 mm insertion
- Material
- Brass
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact PTC sensor. Confirm the PTC 60 ohm characteristic matches the controller input, plus insertion length (53 mm) and thread (G 1/2). Fixed (non-exchangeable) element.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 3270 temperature sensor, PTC 130 ohm, 53 mm insertion, G 1/2 process connection
084Z7251
Danfoss
Danfoss MBT 5113 high-temperature sensor, thermocouple NiCr-Ni Type K, 300 mm insertion, G 3/4 process connection
084Z7014
Danfoss

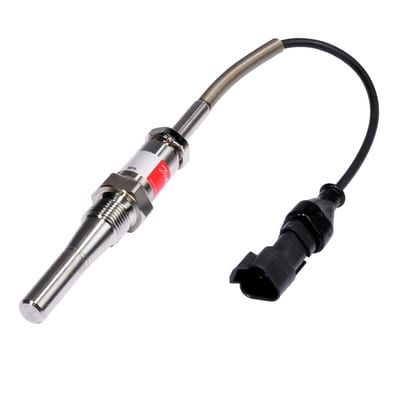

Danfoss MBT 5116 high-temperature sensor, Pt 100 100 ohm, 80 mm insertion, G 1/2, Deutsch DT04 3-Pin
