Danfoss KPS47 pressure switch, 6–60 bar (87–870 psig), 3.5–17 bar (51–247 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPS47 pressure switch, code 060-312266. Regulation range 6–60 bar (87–870 psig) with 3.5–17 bar (51–247 psi), adjustable differential and automatic reset, SPDT snap-action contact system. Pressure connection G 1/4 in (ISO 228-1, female); screwed cable entry, Pg 13.5 (DIN 40430) electrical entry; IP67 enclosure. Max working pressure 120 bar (1740 psig); burst 240 bar. Bellows/diaphragm sensing element. ABS, BV, CCS, DNV, GL, LR, RINA marine type approval. EAN 5702423146956.
Technical Specifications
- Type
- KPS47 pressure switch
- Code number
- 060-312266
- Regulation range
- 6–60 bar (87–870 psig)
- Differential
- 3.5–17 bar (51–247 psi), adjustable
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- SPDT gold; AC1 10 A/440 V, AC15 4 A/440 V, DC13 12 W/220 V
- Pressure connection
- G 1/4 in (ISO 228-1, female)
- Electrical connection
- screwed cable entry, Pg 13.5 (DIN 40430)
- Max working pressure
- 120 bar (1740 psig); burst 240 bar
- Enclosure
- IP67
- Ambient temperature
- -40 to +70 °C
- Approvals
- CE, UL, DNV, ABS, BV, LR, GL, RINA, EAC, EU RoHS; ABS, BV, CCS, DNV, GL, LR, RINA marine type approval
- EAN
- 5702423146956
- Net weight
- 1.125 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Approval
- ABS
- Burst pressure [bar]
- 240 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT gold
- Differential [bar] [max]
- 17 bar
- Differential [bar] [min]
- 3.5 bar
- Differential [psi] [max]
- 247 psi
- Differential [psi] [min]
- 51 psi
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Max. test pressure [bar] Pe
- 180 bar
- Max. test pressure [psig]
- 2611 psig
- Max. Working Pressure [bar]
- 120 bar
- Max. Working Pressure [psig]
- 1740 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure sensing element
- Diaphragm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 60 bar
- Regulation range [bar] Pe [min]
- 6 bar
- Regulation range [psig] Pe [max]
- 870 psig
- Regulation range [psig] Pe [min]
- 87 psig
- Reset function
- Auto
- UL approval file name
- E73170
- UL mark
- Yes
Standards & Compliance
- Material
- Steel housing; stainless diaphragm; gold-plated SPDT contacts
- Thread Standard
- G 1/4 in (ISO 228-1, female)
- Pressure Rating
- max working pressure 120 bar (1740 psig); burst 240 bar
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
Automatic-reset KPS47 for marine and industrial pressure control. IP67 marine-approved sealed enclosure.
Product Documentation
More from Danfoss
Danfoss
Danfoss CAS155 differential pressure switch, 0.2–2.5 bar (2.9–36 psi), 0.1 bar (1.5 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-313066
Danfoss
Danfoss CAS133 pressure switch, 0–3.5 bar (0–51 psig), 0.1 bar (1.5 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-315066
Danfoss
Danfoss CAS136 pressure switch, 0–10 bar (0–145 psig), 0.2 bar (2.9 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-315166
Danfoss
Danfoss CAS137 pressure switch, 6–18 bar (87–261 psig), 0.3 bar (4.4 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-315266
Danfoss
Danfoss CAS139 pressure switch, 10–35 bar (145–508 psig), 0.6 bar (8.7 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-315366
Danfoss
Danfoss KPI35 pressure switch, 0–18 bar (0–261 psig), 0.7 bar (10 psi) differential, automatic reset, SPDT, G 1/4 in, IP30
060-315566
Danfoss
Danfoss CAS143 pressure switch, 1–10 bar (15–145 psig), 0.2–0.6 bar (3–9 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-316066
Danfoss

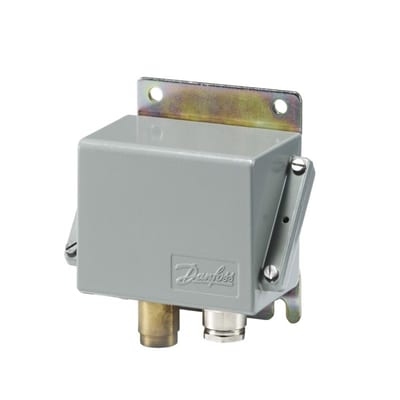

Danfoss CAS145 pressure switch, 4–40 bar (58–580 psig), 0.8–2.4 bar (12–35 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
