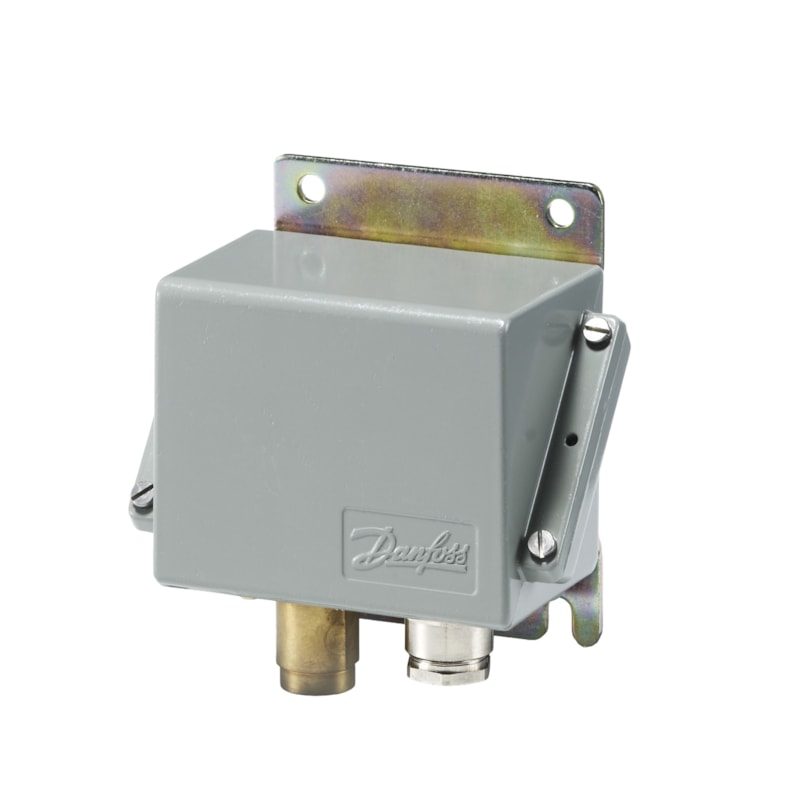

Danfoss CAS137 pressure switch, 6–18 bar (87–261 psig), 0.3 bar (4.4 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CAS137 pressure switch, code 060-315266. Regulation range 6–18 bar (87–261 psig) with 0.3 bar (4.4 psi), fixed differential and automatic reset, SPDT snap-action contact system. Pressure connection G 1/4 in (ISO 228-1, female); screwed cable entry, Pg 13.5 (DIN 40430) electrical entry; IP67 enclosure. Max working pressure 27 bar; burst 72 bar. Bellows/diaphragm sensing element. ABS, BV, DNV, GL, LR, NKK, RINA marine type approval. EAN 5702423151714.
Technical Specifications
- Type
- CAS137 pressure switch
- Code number
- 060-315266
- Regulation range
- 6–18 bar (87–261 psig)
- Differential
- 0.3 bar (4.4 psi), fixed
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- SPDT; AC15 0.1 A/220 V, DC13 12 W/125 V (low-current pilot)
- Pressure connection
- G 1/4 in (ISO 228-1, female)
- Electrical connection
- screwed cable entry, Pg 13.5 (DIN 40430)
- Max working pressure
- 27 bar; burst 72 bar
- Enclosure
- IP67
- Ambient temperature
- -40 to +70 °C
- Approvals
- CE, UL, DNV, ABS, BV, LR, GL, RINA, EAC, EU RoHS; ABS, BV, DNV, GL, LR, NKK, RINA marine type approval
- EAN
- 5702423151714
- Net weight
- 0.918 Kilogram
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ABS
- Burst pressure [bar]
- 72 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar]
- 0.3 bar
- Differential [psi]
- 4.4 psi
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Out of scope
- Max. test pressure [bar] Pe
- 27 bar
- Max. test pressure [psig]
- 392 psig
- Max. Working Pressure [bar]
- 27 bar
- Max. Working Pressure [psig]
- 392 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 18 bar
- Regulation range [bar] Pe [min]
- 6 bar
- Regulation range [psig] Pe [max]
- 261 psig
- Regulation range [psig] Pe [min]
- 87 psig
Standards & Compliance
- Material
- Steel housing; bellows element; low-current SPDT contacts
- Thread Standard
- G 1/4 in (ISO 228-1, female)
- Pressure Rating
- max working pressure 27 bar; burst 72 bar
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
Automatic-reset CAS137 for marine and industrial pressure control. IP67 marine-approved sealed enclosure.
