Danfoss KPI35 pressure switch, 0–18 bar (0–261 psig), 0.7 bar (10 psi) differential, automatic reset, SPDT, G 1/4 in, IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPI35 pressure switch, code 060-315566. Regulation range 0–18 bar (0–261 psig) with 0.7 bar (10 psi), fixed differential and automatic reset, SPDT snap-action contact system. Pressure connection G 1/4 in (ISO 228-1, male); rubber cable gland, 6–14 mm electrical entry; IP30 enclosure. Max working pressure 18 bar (261 psig). Bellows/diaphragm sensing element. RINA approval. EAN 5702423263004.
Technical Specifications
- Type
- KPI35 pressure switch
- Code number
- 060-315566
- Regulation range
- 0–18 bar (0–261 psig)
- Differential
- 0.7 bar (10 psi), fixed
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- SPDT; AC1 10 A/440 V
- Pressure connection
- G 1/4 in (ISO 228-1, male)
- Electrical connection
- rubber cable gland, 6–14 mm
- Max working pressure
- 18 bar (261 psig)
- Enclosure
- IP30
- Ambient temperature
- -40 to +70 °C
- Approvals
- CE, UL, CCC, EAC, RINA, EU RoHS; RINA approval
- EAN
- 5702423263004
- Net weight
- 0.34 Kilogram
- Product group
- Switches and thermostats
- Alarm Signal
- Rising
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar]
- 0.7 bar
- Differential [psi]
- 10 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Factory setting [bar]
- 1.2 bar
- Factory setting [MPa]
- 0.12 MPa
- Factory setting [psig]
- 17 psig
- Further information
- For drinking water
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 18 bar
- Max. test pressure [psig]
- 261 psig
- Max. Working Pressure [bar]
- 18 bar
- Max. Working Pressure [psig]
- 261 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel housing; bellows pressure element
- Thread Standard
- G 1/4 in (ISO 228-1, male)
- Pressure Rating
- max working pressure 18 bar (261 psig)
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Automatic-reset KPI35 for refrigeration/AC and general pressure control.
Product Documentation
More from Danfoss
Danfoss
Danfoss CAS143 pressure switch, 1–10 bar (15–145 psig), 0.2–0.6 bar (3–9 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-316066
Danfoss
Danfoss CAS145 pressure switch, 4–40 bar (58–580 psig), 0.8–2.4 bar (12–35 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-316166
Danfoss
Danfoss CAS147 pressure switch, 6–60 bar (87–870 psig), 1–3 bar (14.5–43.5 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-316266
Danfoss

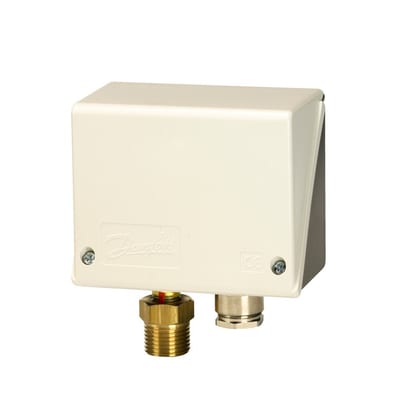

Danfoss KPI36 pressure switch, 2–12 bar (29–174 psig), 0.5–1.6 bar (7–23 psi) differential, automatic reset, SPDT, G 1/2 in male, IP55
060-319566
Danfoss

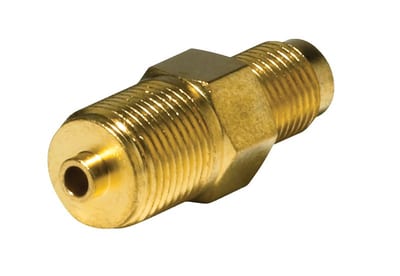

Danfoss pressure-switch reducing nipple, G 1/4 in to G 3/8 in (ISO 228-1, external), transition fitting for CAS/KP/KPS/MBC/MP/RT
