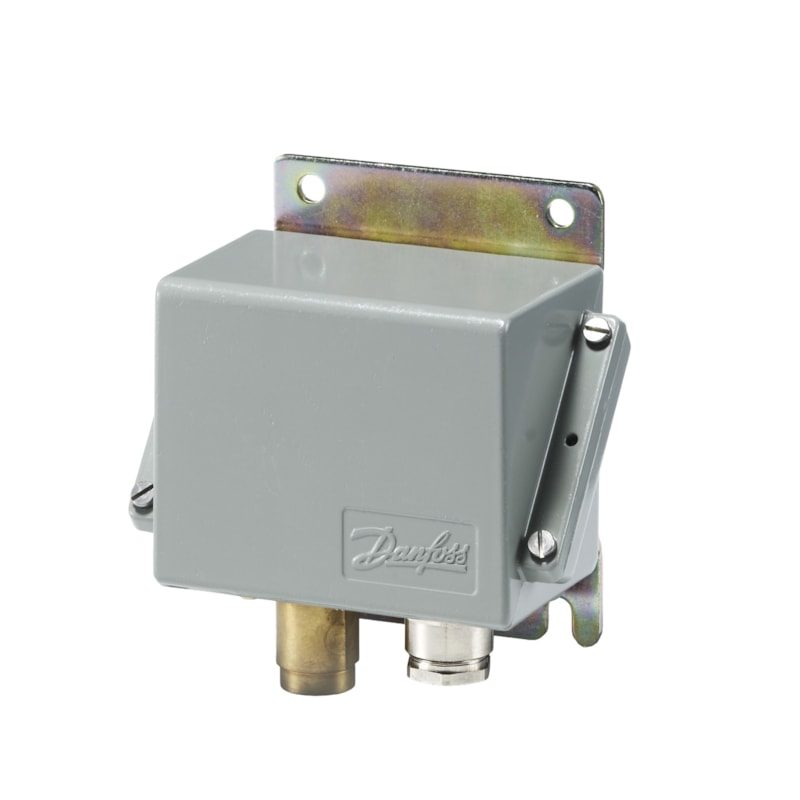

Danfoss CAS143 pressure switch, 1–10 bar (15–145 psig), 0.2–0.6 bar (3–9 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CAS143 pressure switch, code 060-316066. Regulation range 1–10 bar (15–145 psig) with 0.2–0.6 bar (3–9 psi), adjustable and automatic reset, SPDT snap-action contact system. Connection G 1/4 in (ISO 228-1, female). Max working pressure 120 bar (1740 psig). IP67 enclosure. ABS, BV, DNV, GL, LR, NKK, RINA, RMRS marine type approval. EAN 5702423151691.
Technical Specifications
- Type
- CAS143 pressure switch
- Code number
- 060-316066
- Regulation range
- 1–10 bar (15–145 psig)
- Differential
- 0.2–0.6 bar (3–9 psi), adjustable
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- AC1 10 A/440 V, AC15 4 A/440 V, DC13 12 W/220 V
- Connection
- G 1/4 in (ISO 228-1, female)
- Max working pressure
- 120 bar (1740 psig)
- Enclosure
- IP67
- Ambient temperature
- -40 to +70 °C
- Material
- Steel housing; gold-plated SPDT contacts; diaphragm sensing element
- Approvals
- CE, ABS, BV, DNV, GL, LR, NKK, RINA, RMRS, EAC, EU RoHS; ABS, BV, DNV, GL, LR, NKK, RINA, RMRS marine type approval
- EAN
- 5702423151691
- Net weight
- 1.11 Kilogram
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Approval
- ABS
- Burst pressure [bar]
- 240 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar] [max]
- 0.6 bar
- Differential [bar] [min]
- 0.2 bar
- Differential [psi] [max]
- 8.7 psi
- Differential [psi] [min]
- 2.9 psi
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Out of scope
- Max. test pressure [bar] Pe
- 180 bar
- Max. test pressure [psig]
- 2611 psig
- Max. Working Pressure [bar]
- 120 bar
- Max. Working Pressure [psig]
- 1740 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure sensing element
- Diaphragm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 10 bar
- Regulation range [bar] Pe [min]
- 1 bar
- Regulation range [psig] Pe [max]
- 145 psig
- Regulation range [psig] Pe [min]
- 14.5 psig
Standards & Compliance
- Material
- Steel housing; gold-plated SPDT contacts; diaphragm sensing element
- Thread Standard
- G 1/4 in (ISO 228-1, female)
- Pressure Rating
- max working pressure 120 bar (1740 psig)
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
High static-pressure (120 bar MWP) diaphragm switch for marine and industrial pressure monitoring.
