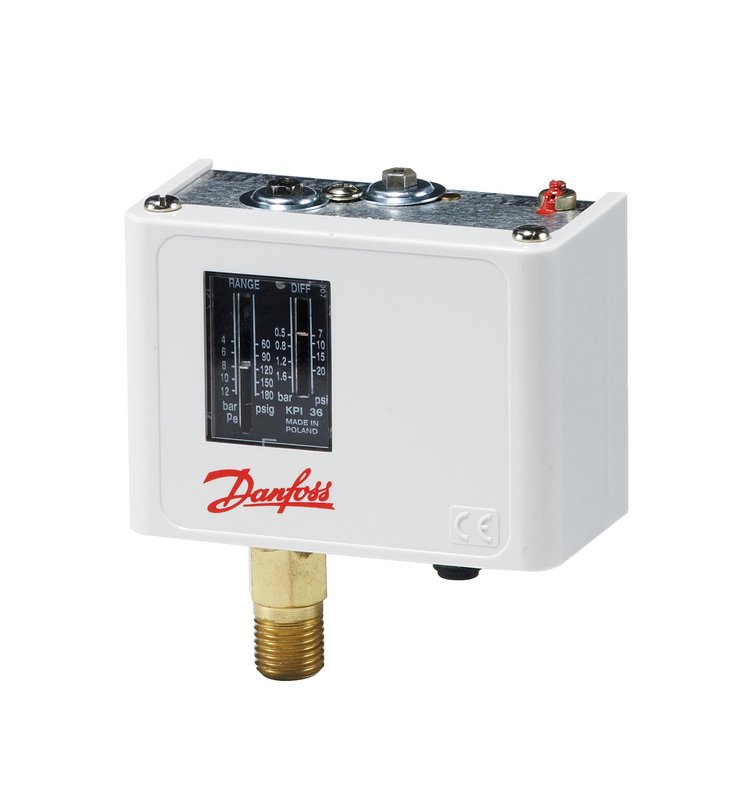

Danfoss KPI36 pressure switch, 4–12 bar (58–174 psig), 0.5–1.6 bar (7–23 psi) differential, automatic reset, SPDT, 1/4-18 NPT, IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPI36 pressure switch, code 060-500366. Regulation range 4–12 bar (58–174 psig) with 0.5–1.6 bar (7–23 psi), adjustable and automatic reset, SPDT snap-action contact system. Connection 1/4-18 NPT (female). Max working pressure 18 bar (261 psig). IP30 enclosure. RINA type approval. EAN 5702423147328.
Technical Specifications
- Type
- KPI36 pressure switch
- Code number
- 060-500366
- Regulation range
- 4–12 bar (58–174 psig)
- Differential
- 0.5–1.6 bar (7–23 psi), adjustable
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- AC1 10 A/440 V, AC15 4 A/440 V, DC13 12 W/220 V
- Connection
- 1/4-18 NPT (female)
- Max working pressure
- 18 bar (261 psig)
- Enclosure
- IP30
- Ambient temperature
- -40 to +70 °C
- Material
- Steel housing; SPDT contacts; bellows sensing element
- Approvals
- CE, UL, RINA, EAC, CCC, CMIM, EU RoHS; RINA type approval
- EAN
- 5702423147328
- Net weight
- 0.329 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar] [max]
- 1.6 bar
- Differential [bar] [min]
- 0.5 bar
- Differential [psi] [max]
- 23 psi
- Differential [psi] [min]
- 7 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 18 bar
- Max. test pressure [psig]
- 261 psig
- Max. Working Pressure [bar]
- 18 bar
- Max. Working Pressure [psig]
- 261 psig
- Pressure connection size
- 1/4-18
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Female
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 12 bar
- Regulation range [bar] Pe [min]
- 4 bar
- Regulation range [psig] Pe [max]
- 174 psig
- Regulation range [psig] Pe [min]
- 58 psig
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel housing; SPDT contacts; bellows sensing element
- Thread Standard
- 1/4-18 NPT (female)
- Pressure Rating
- max working pressure 18 bar (261 psig)
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
NPT-connection KPI36 pressure switch, 4–12 bar range, for refrigeration and machinery pressure limiting.
