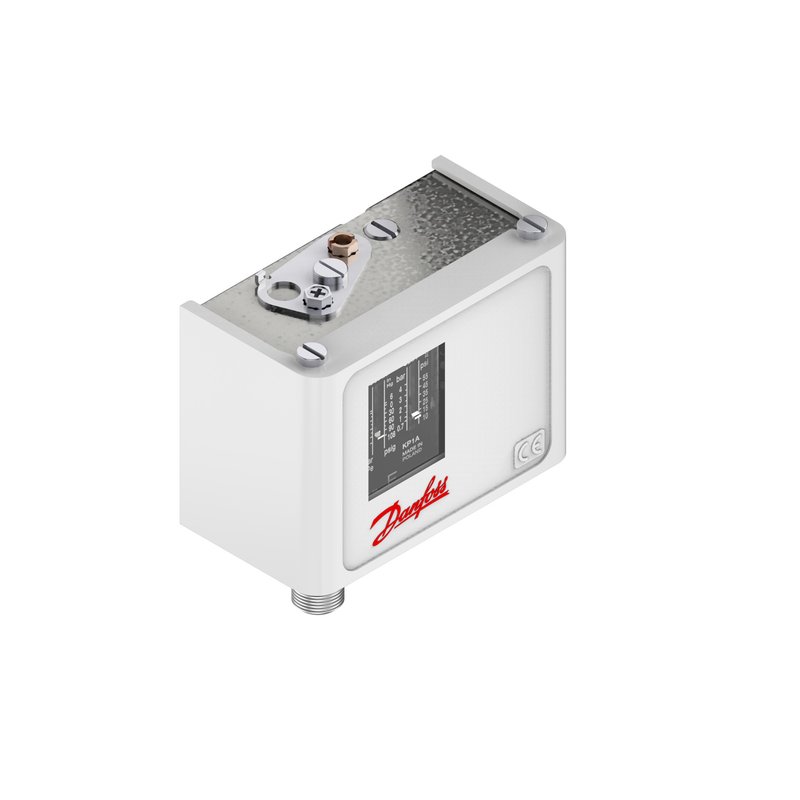

Danfoss KP1A pressure switch, -0.9–7 bar (27 inHg–101 psig), 0.7 bar (10 psi) differential, manual-min reset, SPDT, M12 x 1.5 male, IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP1A pressure switch, code 060-500466. Regulation range -0.9–7 bar (27 inHg–101 psig) with 0.7 bar (10 psi), fixed and manual (min) reset reset, SPDT snap-action contact system. Connection M12 x 1.5 (ISO 8434-1, male). Max working pressure 17 bar (245 psig). IP30 enclosure. BV, DNV, GL, LR, RINA, RMRS type approval. EAN 5702428016902.
Technical Specifications
- Type
- KP1A pressure switch
- Code number
- 060-500466
- Regulation range
- -0.9–7 bar (27 inHg–101 psig)
- Differential
- 0.7 bar (10 psi), fixed
- Reset
- manual (min) reset
- Contact system
- SPDT
- Contact rating
- AC1 10 A/440 V, AC15 4 A/440 V, DC13 12 W/220 V
- Connection
- M12 x 1.5 (ISO 8434-1, male)
- Max working pressure
- 17 bar (245 psig)
- Enclosure
- IP30
- Ambient temperature
- -40 to +70 °C
- Material
- Steel housing; SPDT contacts; bellows sensing element
- Approvals
- CE, UL, BV, DNV, GL, LR, RINA, RMRS, EAC, CCC, PED, EU RoHS; BV, DNV, GL, LR, RINA, RMRS type approval
- EAN
- 5702428016902
- Net weight
- 0.295 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar]
- 0.7 bar
- Differential [psi]
- 10 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 20 bar
- Max. test pressure [psig]
- 290 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 245 psig
- Oil free refrigerants
- R134a
- PED category
- IV
- Pressure connection notes
- Cutting ring 6mm tube
- Pressure connection size
- 12 x 1.5
- Pressure connection standard
- ISO 8434-1
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range [bar] Pe [max]
- 7 bar
- Regulation range [bar] Pe [min]
- -0.9 bar
- Reset function
- Manual Min
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel housing; SPDT contacts; bellows sensing element
- Thread Standard
- M12 x 1.5 (ISO 8434-1, male)
- Pressure Rating
- max working pressure 17 bar (245 psig)
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Manual-minimum-reset KP1A low-pressure limiter with M12 x 1.5 male connection for marine and refrigeration safety cut-out.
