Danfoss KP1E pressure switch (ATEX), -0.2–7.5 bar (6 inHg–108 psig), 0.7–4 bar (10–58 psi) differential, automatic reset, SPDT gold, 1/4 in solder, IP44
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP1E pressure switch, code 060-530066. Regulation range -0.2–7.5 bar (6 inHg–108 psig) with 0.7–4 bar (10–58 psi), adjustable and automatic reset, SPDT snap-action contact system. Connection 1/4 in solder, ODF. Max working pressure 17 bar (246 psig). IP44 enclosure. RINA, RMRS type approval. EAN 5702428036818.
Technical Specifications
- Type
- KP1E pressure switch
- Code number
- 060-530066
- Regulation range
- -0.2–7.5 bar (6 inHg–108 psig)
- Differential
- 0.7–4 bar (10–58 psi), adjustable
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- AC1 10 A/440 V, AC15 4 A/440 V, DC13 12 W/220 V
- Connection
- 1/4 in solder, ODF
- Max working pressure
- 17 bar (246 psig)
- Enclosure
- IP44
- Ambient temperature
- -40 to +70 °C
- Material
- Steel housing; gold-plated SPDT contacts; bellows sensing element
- Approvals
- CE, UL, ATEX (II 3G, Cat. 3, Zone 2), RINA, RMRS, EAC, CCC, PED, EU RoHS; RINA, RMRS type approval
- EAN
- 5702428036818
- Net weight
- 0.386 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 40 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 104 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Application note
- Not applicable for liquid line
- Approval
- ATEX - Cat. 3 - Zone 2
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Contact function
- SPDT gold
- Differential [bar] [max]
- 4 bar
- Differential [bar] [min]
- 0.7 bar
- Differential [psi] [max]
- 58 psi
- Differential [psi] [min]
- 10 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- Equipment
- Bellows stop
- EU RoHS compliance
- Yes
- EX Sales text
- -20C<ta<+60C
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 20 bar
- Max. test pressure [psig]
- 138 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 246 psig
- Oil free refrigerants
- R1234ze(E)
- PED category
- IV
- Pressure connection size
- 1/4
- Pressure connection standard
- EN 1254-1
- Pressure connection type
- Solder, ODF
- Pressure Male/Female
- Female
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Regulation range [bar] Pe [max]
- 7.5 bar
- Regulation range [bar] Pe [min]
- -0.2 bar
- Reset function
- Auto
- UL approved refrigerants
- R516A
Standards & Compliance
- Material
- Steel housing; gold-plated SPDT contacts; bellows sensing element
- Thread Standard
- 1/4 in solder, ODF
- Pressure Rating
- max working pressure 17 bar (246 psig)
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
ATEX Cat. 3 (Zone 2) KP1E low-pressure switch with 1/4 in solder connection and gold contacts for potentially explosive atmospheres.
Product Documentation
More from Danfoss
Danfoss
Danfoss KP1E pressure switch (ATEX), -0.9–7 bar (27 inHg–101 psig), 0.7 bar (10 psi) differential, manual-min reset, SPDT gold, 1/4 in solder, IP30
060-530266
Danfoss

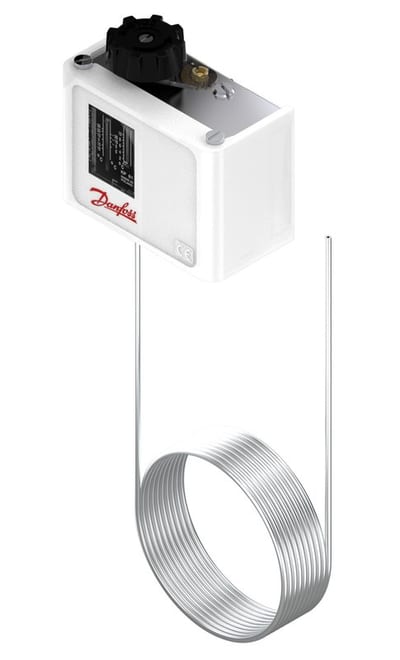

Danfoss KP61 thermostat, -30 to 15 °C, automatic, SPDT, capillary tube sensor
