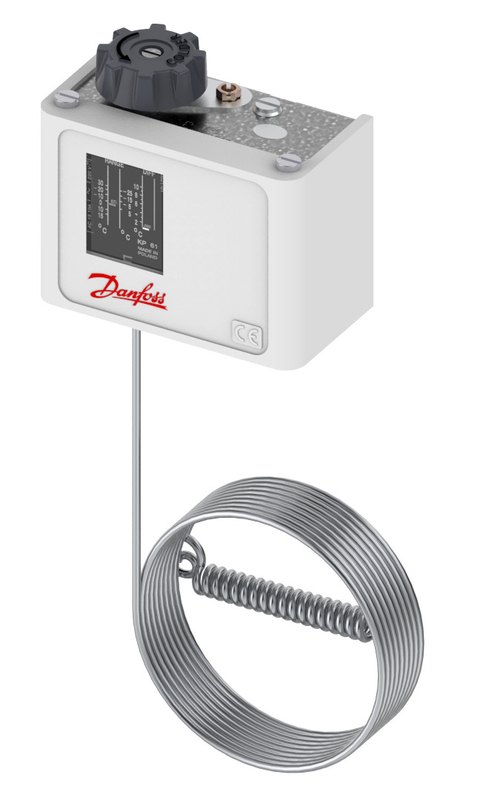

Danfoss KP61 thermostat, -30 to 13 °C, automatic, SPDT, remote air coil
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KP61 thermostat, code 060L110266. Sensor (regulating) range -30 to 13 °C (-22 to 55 °F) via remote air coil with 2000 mm capillary tube. Differential 1.2 to 7 K (max range setting); 4.5 to 23 K (min range setting), adjustable; automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 120 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702428014496.
Specifications
- Part number
- 060L110266
- HS code
- 9032.10
- Material
- Remote air coil with steel housing
- Temperature range
- -40 to +65 °C (80 °C for max 120 min)
- IP rating
- IP30
Compatibility
KP61 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (-30 to 13 °C) and differential against the set point before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- UL
- DNV
- BV
- GL
- LR
- RINA
- RMRS
- LVD
- CMIM
