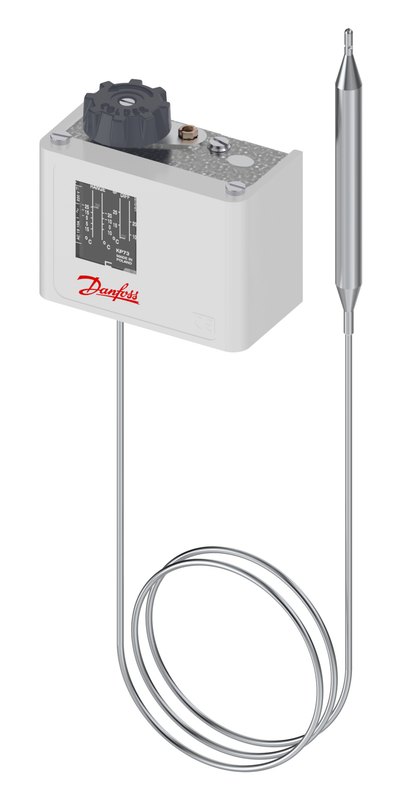

Danfoss KP71 thermostat, -5 to 20 °C, automatic, SPDT, remote bulb 9.5 x 115 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP71 thermostat, code 060L111366. Sensor (regulating) range -5 to 20 °C (23 to 68 °F) via remote bulb 9.5 x 115 mm with 2000 mm capillary tube. Differential 2.2 to 9 K (max range setting); 3 to 10 K (min range setting), adjustable; automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 80 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702428014854.
Technical Specifications
- Type
- KP71 thermostat
- Code number
- 060L111366
- Sensor (regulating) range
- -5 to 20 °C (23 to 68 °F)
- Differential
- 2.2 to 9 K (max range setting); 3 to 10 K (min range setting), adjustable
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact rating
- AC15 10 A 400 V; AC1 16 A 400 V; AC3 16 A 400 V; DC13 12 W 220 V; LR 112 A 400 V
- Sensor
- remote bulb 9.5 x 115 mm
- Capillary tube length
- 2000 mm
- Maximum sensor temperature
- 80 °C
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C (80 °C for max 120 min)
- Electrical connection
- rubber cable gland 6-14 mm
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, LR, RINA, RMRS, LVD, CMIM
- EAN
- 5702428014854
- Net weight
- 0.368 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 150 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Diff. @ Max. range setting [K] [max]
- 9 K
- Diff. @ Max. range setting [K] [min]
- 2.2 K
- Diff. @ Max. range setting[°C] [max]
- 9 °C
- Diff. @ Max. range setting[°C] [min]
- 2.2 °C
- Diff. @ Min. range setting [K] [max]
- 10 K
- Diff. @ Min. range setting [K] [min]
- 3 K
- Diff. @ Min. range setting[°C] [max]
- 10 °C
- Diff. @ Min. range setting[°C] [min]
- 3 °C
- Differential type
- Adjustable
- Electrical connection size
- 6-14 mm
- Electrical spec. standard
- EN 60947-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Identical product
- 060L119466
- Max. sensor temperature [°C]
- 80 °C
- Max. sensor temperature [°F]
- 176 °F
- Other RoHS documentation
- Saudi Arabia RoHS
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 3/8 x 4 1/2 in
- Sensor size (Ø x L) [mm]
- 9.5 x 115 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 20 °C
- Temperature range [°C] [min]
- -5 °C
- Temperature range [°F] [max]
- 68 °F
- Temperature range [°F] [min]
- 23 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Remote bulb with steel housing
- Temperature Range
- -40 to +65 °C (80 °C for max 120 min)
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP71 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (-5 to 20 °C) and differential against the set point before ordering.
