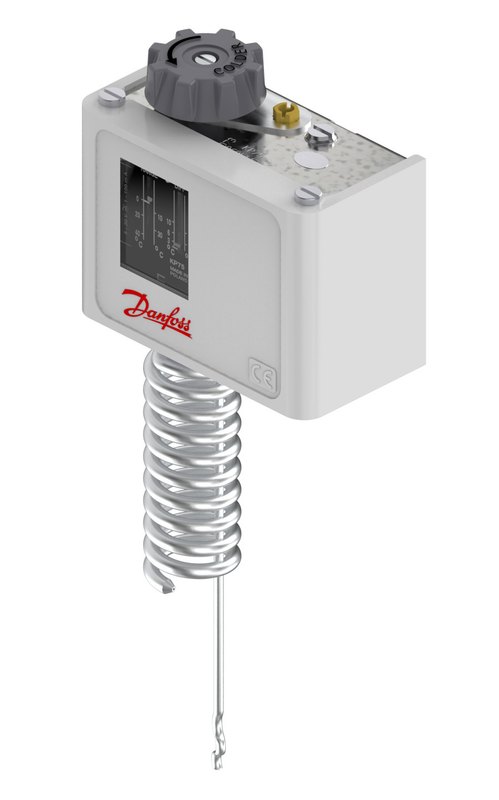

Danfoss KP75 thermostat, 0 to 40 °C, automatic, SPDT gold-plated, room sensor 25 x 78 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP75 thermostat, code 060L117166. Sensor (regulating) range 0 to 40 °C (32 to 104 °F) via room sensor 25 x 78 mm. Differential 3 K (max range setting); 4 to 10 K (min range setting); automatic; SPDT gold-plated (low-current) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 80 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702423148769.
Technical Specifications
- Type
- KP75 thermostat
- Code number
- 060L117166
- Sensor (regulating) range
- 0 to 40 °C (32 to 104 °F)
- Differential
- 3 K (max range setting); 4 to 10 K (min range setting)
- Reset
- Automatic
- Contact system
- SPDT gold-plated (low-current)
- Contact rating
- AC15 4 A 400 V; AC1 10 A 400 V; AC3 6 A 400 V (gold contacts)
- Sensor
- room sensor 25 x 78 mm
- Maximum sensor temperature
- 80 °C
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C (80 °C for max 120 min)
- Electrical connection
- rubber cable gland 6-14 mm
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, LR, RINA, RMRS, LVD, CMIM
- EAN
- 5702423148769
- Net weight
- 0.356 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 150 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Contact function
- SPDT gold
- Diff. @ Max. range setting [K]
- 3 K
- Diff. @ Max. range setting[°C]
- 3 °C
- Diff. @ Min. range setting [K] [max]
- 10 K
- Diff. @ Min. range setting [K] [min]
- 4 K
- Diff. @ Min. range setting[°C] [max]
- 10 °C
- Diff. @ Min. range setting[°C] [min]
- 4 °C
- Differential type
- Adjustable
- Electrical connection size
- 6-14 mm
- Electrical spec. standard
- EN 60947-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 80 °C
- Max. sensor temperature [°F]
- 176 °F
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 1 x 3 in
- Sensor size (Ø x L) [mm]
- 25 x 78 mm
- Sensor type
- Room sensor
- Temperature range [°C] [max]
- 40 °C
- Temperature range [°C] [min]
- 0 °C
- Temperature range [°F] [max]
- 104 °F
- Temperature range [°F] [min]
- 32 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Room sensor with steel housing; gold-plated contacts
- Temperature Range
- -40 to +65 °C (80 °C for max 120 min)
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP75 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (0 to 40 °C) and differential against the set point before ordering.
