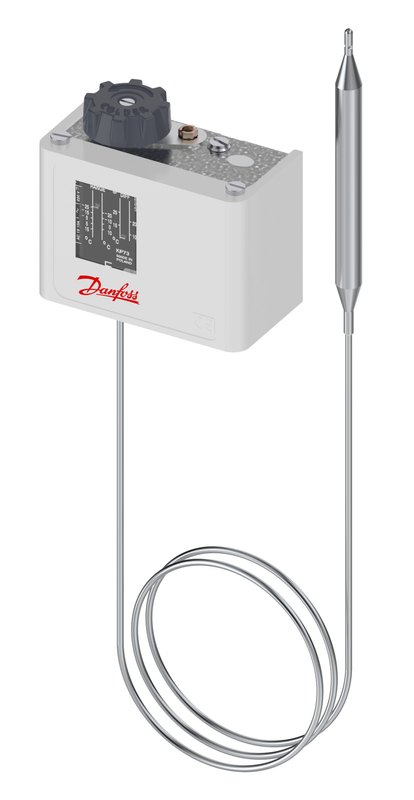

Danfoss KP71 thermostat, -4 to 21 °C, automatic reset, remote bulb
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP71 thermostat, code 060L201066. Sensor (regulating) range -4 to 21 °C (25 to 70 °F) via remote bulb, 2030 mm capillary tube. Differential 2.2 to 9 K (min range); 3 to 10 K (max range); automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30; ambient -40 to +65 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and limit protection of non-aggressive media. EAN 5702428016735.
Technical Specifications
- Type
- KP71 thermostat
- Code number
- 060L201066
- Sensor (regulating) range
- -4 to 21 °C (25 to 70 °F)
- Differential
- 2.2 to 9 K (min range); 3 to 10 K (max range)
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Sensor
- remote bulb
- Capillary tube length
- 2030 mm
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Electrical connection
- rubber cable gland
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, LR, RINA, RMRS, LVD, CMIM
- EAN
- 5702428016735
- Net weight
- 0.416 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 150 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- Cap. tube length fraction [in]
- 80 in
- Capillary tube length [mm]
- 2030 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- 120 V ac, 16 FLA, 96 LRA
- Diff. @ Max. range setting [K] [max]
- 9 K
- Diff. @ Max. range setting [K] [min]
- 2.2 K
- Diff. @ Max. range setting[°C] [max]
- 9 °C
- Diff. @ Max. range setting[°C] [min]
- 2.2 °C
- Diff. @ Max. range setting[°F] [max]
- 16 °F
- Diff. @ Max. range setting[°F] [min]
- 4 °F
- Diff. @ Min. range setting [K] [max]
- 10 K
- Diff. @ Min. range setting [K] [min]
- 3 K
- Diff. @ Min. range setting[°C] [max]
- 10 °C
- Diff. @ Min. range setting[°C] [min]
- 3 °C
- Diff. @ Min. range setting[°F] [max]
- 18 °F
- Diff. @ Min. range setting[°F] [min]
- 5.4 °F
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection size
- NPSM 1/2 - 14
- Electrical connection standard
- ANSI/ASME B1.20.1
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 80 °C
- Max. sensor temperature [°F]
- 176 °F
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 3/8 x 4 1/2 in
- Sensor size (Ø x L) [mm]
- 9.5 x 115 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 21 °C
- Temperature range [°C] [min]
- -4 °C
- Temperature range [°F] [max]
- 70 °F
- Temperature range [°F] [min]
- 25 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- remote bulb with steel housing
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP71 temperature switch for HVAC-R temperature regulation and limit/frost/overheat protection. Contact wired NO or NC. Verify regulating range (-4 to 21 °C) and differential against the set point before ordering.
