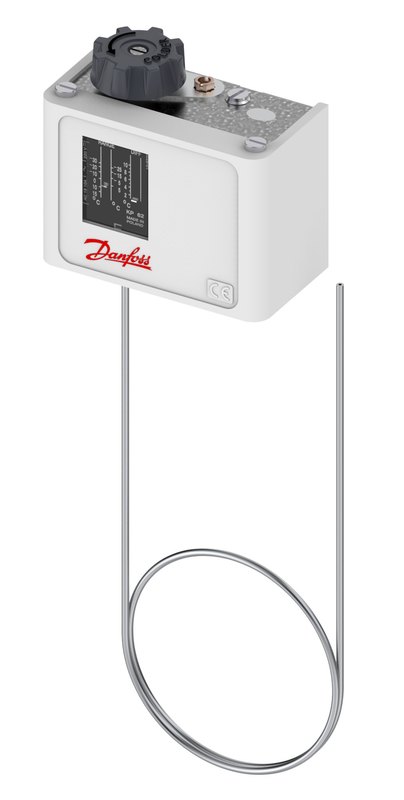

Danfoss KP62 thermostat, -30 to 15 °C, automatic reset, room sensor
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP62 thermostat, code 060L201566. Sensor (regulating) range -30 to 15 °C (-20 to 60 °F) via room sensor. Differential 1.5 to 7 K (max range); 6 to 23 K (min range); automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30; ambient -40 to +65 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and limit protection of non-aggressive media. EAN 5702428014793.
Technical Specifications
- Type
- KP62 thermostat
- Code number
- 060L201566
- Sensor (regulating) range
- -30 to 15 °C (-20 to 60 °F)
- Differential
- 1.5 to 7 K (max range); 6 to 23 K (min range)
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Sensor
- room sensor
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Electrical connection
- rubber cable gland
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, LR, RINA, RMRS, LVD
- EAN
- 5702428014793
- Net weight
- 0.296 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 150 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- CE mark
- Yes
- Charge type
- Vapour
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- 120 V ac, 16 FLA, 96 LRA
- Diff. @ Max. range setting [K] [max]
- 7 K
- Diff. @ Max. range setting [K] [min]
- 1.5 K
- Diff. @ Max. range setting[°C] [max]
- 7 °C
- Diff. @ Max. range setting[°C] [min]
- 1.5 °C
- Diff. @ Max. range setting[°F] [max]
- 13 °F
- Diff. @ Max. range setting[°F] [min]
- 2.7 °F
- Diff. @ Min. range setting [K] [max]
- 23 K
- Diff. @ Min. range setting [K] [min]
- 6 K
- Diff. @ Min. range setting[°C] [max]
- 23 °C
- Diff. @ Min. range setting[°C] [min]
- 6 °C
- Diff. @ Min. range setting[°F] [max]
- 40 °F
- Diff. @ Min. range setting[°F] [min]
- 11 °F
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection size
- NPSM 1/2 - 14
- Electrical connection standard
- ANSI/ASME B1.20.1
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 120 °C
- Max. sensor temperature [°F]
- 248 °F
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 1 1/2 x 1 1/4 in
- Sensor size (Ø x L) [mm]
- 40 x 30 mm
- Sensor type
- Room sensor
- Temperature range [°C] [max]
- 15 °C
- Temperature range [°C] [min]
- -30 °C
- Temperature range [°F] [max]
- 60 °F
- Temperature range [°F] [min]
- -20 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- room sensor with steel housing
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP62 temperature switch for HVAC-R temperature regulation and limit/frost/overheat protection. Contact wired NO or NC. Verify regulating range (-30 to 15 °C) and differential against the set point before ordering.
