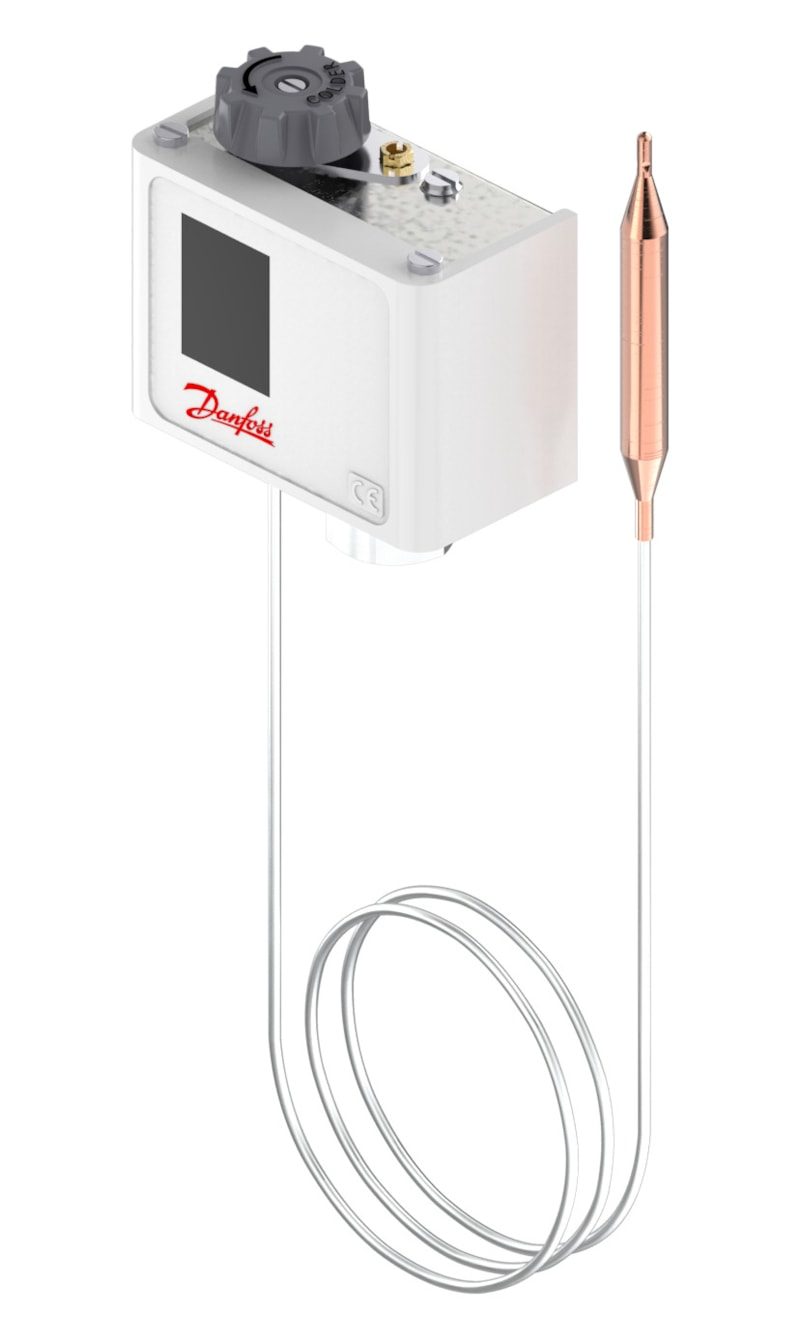

Danfoss KP81 thermostat, 80 to 116 °C, automatic reset, remote bulb
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP81 thermostat, code 060L224066. Sensor (regulating) range 80 to 116 °C (175 to 240 °F) via remote bulb, 2030 mm capillary tube. Differential 6 to 20 K (adjustable); automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30; ambient -40 to +65 °C. Carries marine type approval (DNV/BV/GL/RINA/RMRS). For temperature monitoring, control and limit protection of non-aggressive media. EAN 5702423229291.
Technical Specifications
- Type
- KP81 thermostat
- Code number
- 060L224066
- Sensor (regulating) range
- 80 to 116 °C (175 to 240 °F)
- Differential
- 6 to 20 K (adjustable)
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Sensor
- remote bulb
- Capillary tube length
- 2030 mm
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Electrical connection
- rubber cable gland
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, RINA, RMRS, LVD, CMIM
- EAN
- 5702423229291
- Net weight
- 0.388 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 150 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- Cap. tube length fraction [in]
- 80 in
- Capillary tube length [mm]
- 2030 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- 120 V ac, 16 FLA, 96 LRA
- Diff. @ Max. range setting [K] [max]
- 20 K
- Diff. @ Max. range setting [K] [min]
- 6 K
- Diff. @ Max. range setting[°C] [max]
- 20 °C
- Diff. @ Max. range setting[°C] [min]
- 6 °C
- Diff. @ Max. range setting[°F] [max]
- 42 °F
- Diff. @ Max. range setting[°F] [min]
- 12 °F
- Diff. @ Min. range setting [K] [max]
- 20 K
- Diff. @ Min. range setting [K] [min]
- 6 K
- Diff. @ Min. range setting[°C] [max]
- 20 °C
- Diff. @ Min. range setting[°C] [min]
- 6 °C
- Diff. @ Min. range setting[°F] [max]
- 36 °F
- Diff. @ Min. range setting[°F] [min]
- 11 °F
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection size
- NPSM 1/2 - 14
- Electrical connection standard
- ANSI/ASME B1.20.1
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 200 °C
- Max. sensor temperature [°F]
- 392 °F
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 3/8 x 3 3/8 in
- Sensor size (Ø x L) [mm]
- 9.5 x 85 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 116 °C
- Temperature range [°C] [min]
- 80 °C
- Temperature range [°F] [max]
- 240 °F
- Temperature range [°F] [min]
- 175 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- remote bulb with steel housing
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP81 temperature switch for HVAC-R temperature regulation and limit/frost/overheat protection. Contact wired NO or NC. Verify regulating range (80 to 116 °C) and differential against the set point before ordering.
