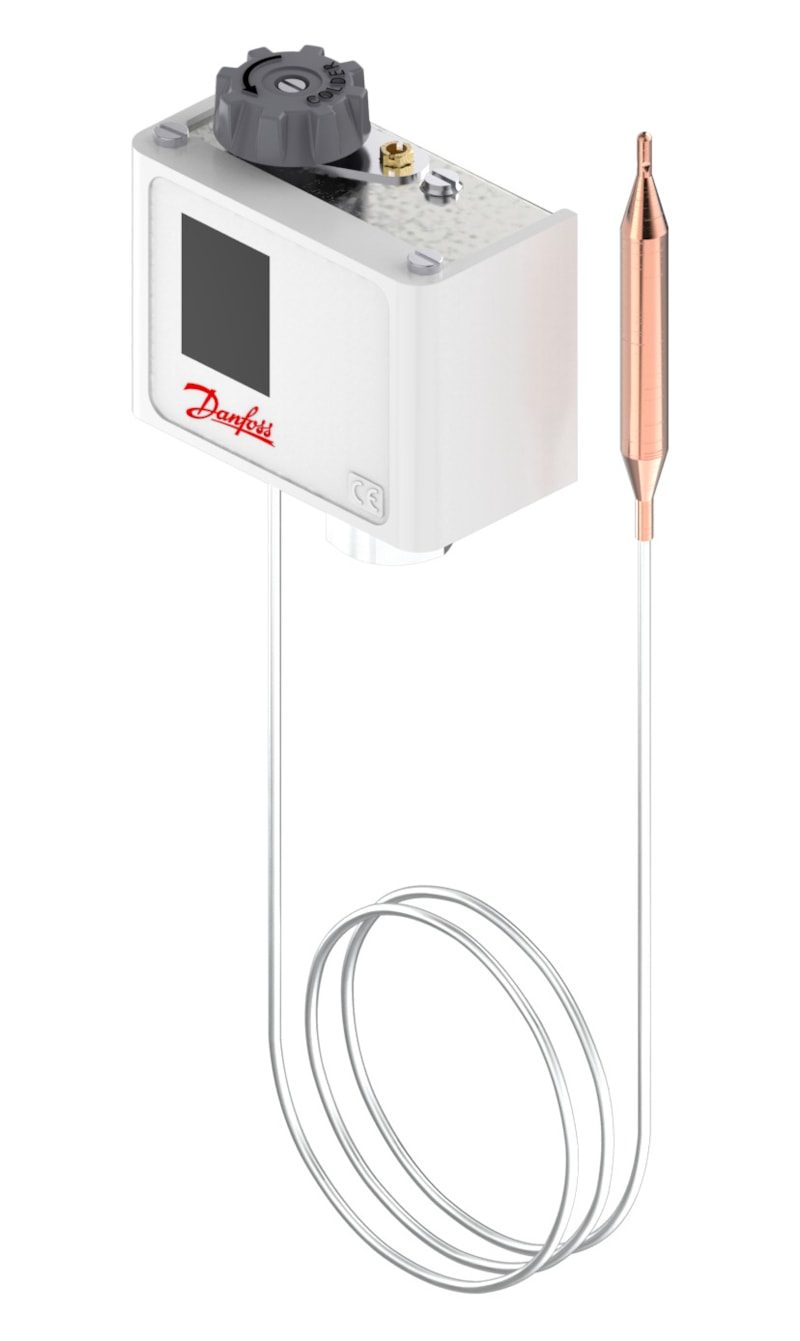

Danfoss KP81 thermostat, 80 to 149 °C, automatic reset, remote bulb
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KP81 thermostat, code 060L202366. Sensor (regulating) range 80 to 149 °C (175 to 300 °F) via remote bulb, 2030 mm capillary tube. Differential 6 to 23 K (adjustable); automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30; ambient -40 to +65 °C. Carries marine type approval (DNV/BV/GL/RINA/RMRS). For temperature monitoring, control and limit protection of non-aggressive media. EAN 5702423200320.
Specifications
- Part number
- 060L202366
- HS code
- 9032.10
- Material
- remote bulb with steel housing
- Temperature range
- -40 to +65 °C
- IP rating
- IP30
Compatibility
KP81 temperature switch for HVAC-R temperature regulation and limit/frost/overheat protection. Contact wired NO or NC. Verify regulating range (80 to 149 °C) and differential against the set point before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- UL
- CSA
- DNV
- BV
- GL
- RINA
- RMRS
- LVD
- CMIM
