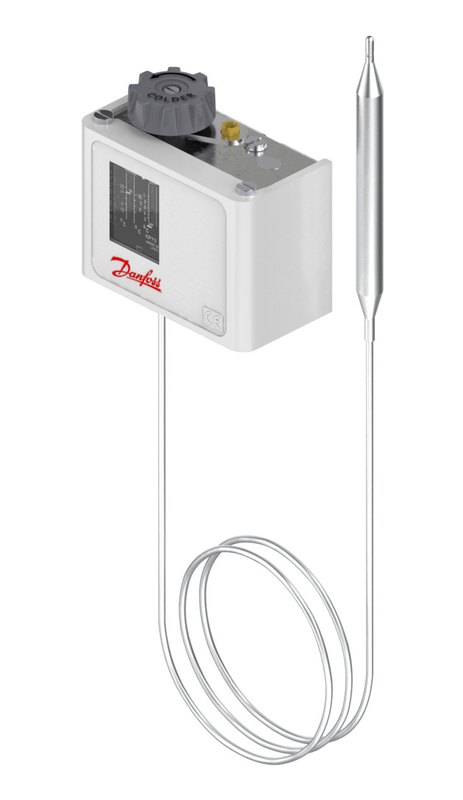

Danfoss KP73 thermostat, -25 to 15 °C, automatic reset, remote bulb
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP73 thermostat, code 060L202966. Sensor (regulating) range -25 to 15 °C (-13 to 59 °F) via remote bulb, 2030 mm capillary tube. Differential 19 K (fixed); automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30; ambient -40 to +65 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and limit protection of non-aggressive media. EAN 5702428014823.
Technical Specifications
- Type
- KP73 thermostat
- Code number
- 060L202966
- Sensor (regulating) range
- -25 to 15 °C (-13 to 59 °F)
- Differential
- 19 K (fixed)
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Sensor
- remote bulb
- Capillary tube length
- 2030 mm
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Electrical connection
- rubber cable gland
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, LR, RINA, RMRS, LVD, CMIM
- EAN
- 5702428014823
- Net weight
- 0.404 Kilogram
- Product group
- Switches and thermostats
- Alarm Signal
- Rising
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 150 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- Cap. tube length fraction [in]
- 80 in
- Capillary tube length [mm]
- 2030 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- 120 V ac, 16 FLA, 96 LRA
- Diff. @ Min. range setting[°F]
- 19 °F
- Differential (FS) [K]
- 19 K
- Differential type
- Fixed
- Electrical conn. Male/Female
- Female
- Electrical connection size
- NPSM 1/2 - 14
- Electrical connection standard
- ANSI/ASME B1.20.1
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Factory setting (FS) [°C]
- 15.6 °C
- Factory setting (FS) [°F]
- 60 °F
- Factory setting type
- Dedicated
- Max. sensor temperature [°C]
- 80 °C
- Max. sensor temperature [°F]
- 176 °F
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 1/4 x 3 3/4 in
- Sensor size (Ø x L) [mm]
- 6.4 x 95 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 15 °C
- Temperature range [°C] [min]
- -25 °C
- Temperature range [°F] [max]
- 59 °F
- Temperature range [°F] [min]
- -13 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- remote bulb with steel housing
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP73 temperature switch for HVAC-R temperature regulation and limit/frost/overheat protection. Contact wired NO or NC. Verify regulating range (-25 to 15 °C) and differential against the set point before ordering.
