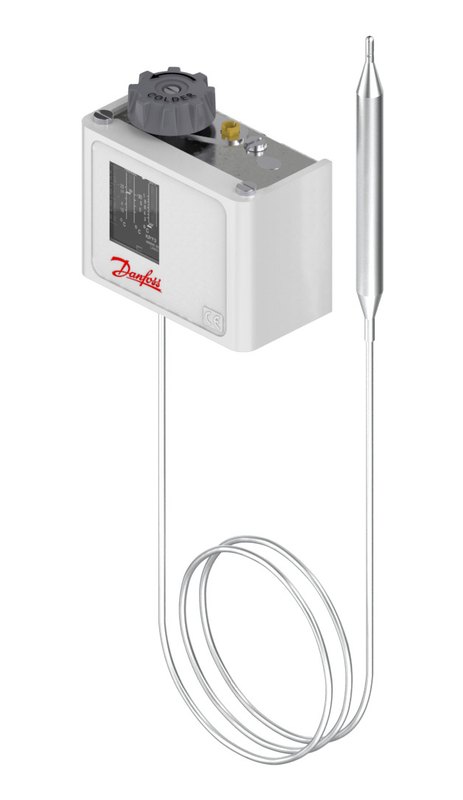

Danfoss KP73 thermostat, -25 to 15 °C, automatic, SPDT, remote bulb 9.5 x 115 mm
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KP73 thermostat, code 060L113066. Sensor (regulating) range -25 to 15 °C (-13 to 59 °F) via remote bulb 9.5 x 115 mm with 5000 mm capillary tube. Differential 3 to 7 K (max range setting); 3.5 to 10 K (min range setting), adjustable; automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 80 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702428016483.
Specifications
- Part number
- 060L113066
- HS code
- 9032.10
- Material
- Remote bulb with steel housing
- Temperature range
- -40 to +65 °C (80 °C for max 120 min)
- IP rating
- IP30
Compatibility
KP73 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (-25 to 15 °C) and differential against the set point before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- UL
- CSA
- DNV
- BV
- GL
- LR
- RINA
- RMRS
- LVD
- CMIM
