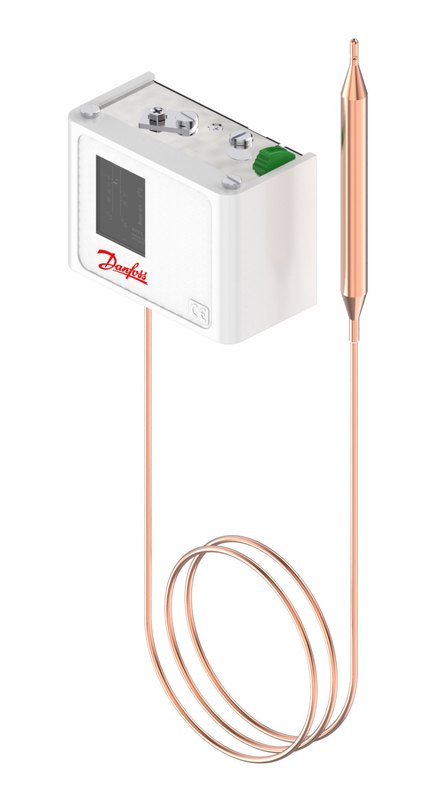

Danfoss KP71 thermostat, -5 to 20 °C, manual (minimum) reset, SPDT, remote bulb 9.5 x 115 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP71 thermostat, code 060L111566. Sensor (regulating) range -5 to 20 °C (23 to 68 °F) via remote bulb 9.5 x 115 mm with 2000 mm capillary tube. Differential 3 K (fixed, both range settings); manual (minimum) reset; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 80 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702428016445.
Technical Specifications
- Type
- KP71 thermostat Code number: 060L111566 Sensor (regulating) range: -5 to 20 °C (23 to 68 °F) Differential: 3 K (fixed, both range settings) Reset: Manual (minimum) reset Contact system: SPDT (single-pole double-throw) Contact rating: AC15 10 A 400 V; AC1 16 A 400 V; AC3 16 A 400 V; DC13 12 W 220 V; LR 112 A 400 V Sensor: remote bulb 9.5 x 115 mm Capillary tube length: 2000 mm Maximum sensor temperature: 80 °C Enclosure: IP30 Ambient temperature: -40 to +65 °C (80 °C for max 120 min) Electrical connection: rubber cable gland 6-14 mm Approvals: CE, EAC, CCC, UL, CSA, DNV, BV, GL, LR, RINA, RMRS, LVD, CMIM EAN: 5702428016445 Net weight: 0.362 Kilogram Product group: Switches and thermostats Amb. Temp. Note: 80 °C/176 °F for max 120 min Ambient temperature range [°C] [max]: 65 °C Ambient temperature range [°C] [min]: -40 °C Ambient temperature range [°F] [max]: 150 °F Ambient temperature range [°F] [min]: -40 °F Approval: BV Cap. tube length fraction [in]: 78 3/4 in Capillary tube length [mm]: 2000 mm CE mark: Yes Charge type: Adsorption China RoHS compliance: Yes Contact function: SPDT Diff. @ Max. range setting [K]: 3 K Diff. @ Max. range setting[°C]: 3 °C Diff. @ Min. range setting [K]: 3 K Diff. @ Min. range setting[°C]: 3 °C Differential type: Fixed Electrical connection size: 6-14 mm Electrical spec. standard: EN 60947-5 EN 60947 electrical properties: Insulation: 400V EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2 Enclosure rating IP: IP30 Enclosure rating Nema (~): 1 EU RoHS compliance: Yes Max. sensor temperature [°C]: 80 °C Max. sensor temperature [°F]: 176 °F REACH Candidate List substances: Lead (CAS no. 7439-92-1) Reset function: Manual Min Sensor size (Ø x L) [in]: 3/8 x 4 1/2 in Sensor size (Ø x L) [mm]: 9.5 x 115 mm Sensor type: Remote bulb Temperature range [°C] [max]: 20 °C Temperature range [°C] [min]: -5 °C Temperature range [°F] [max]: 68 °F Temperature range [°F] [min]: 23 °F UL approval file name: E31024 UL mark: Yes
Standards & Compliance
- Material
- Remote bulb with steel housing
- Temperature Range
- -40 to +65 °C (80 °C for max 120 min)
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP71 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (-5 to 20 °C) and differential against the set point before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss KP75 thermostat, 0 to 35 °C, automatic, SPDT, remote duct sensor 25 x 125 mm
060L112066
Danfoss
Danfoss KP77 thermostat, 20 to 60 °C, automatic, SPDT, remote bulb 9.5 x 85 mm 060L112166
Danfoss
Danfoss KP77 thermostat, 20 to 60 °C, automatic, SPDT, remote bulb 9.5 x 85 mm 060L112266
Danfoss
Danfoss KP73 thermostat, -25 to 15 °C, automatic, SPDT, remote bulb 9.5 x 115 mm
060L113066
Danfoss
Danfoss KP98 thermostat, 60 to 120 °C / 100 to 180 °C (dual range), manual (maximum) reset, 2 x SPST, remote bulb 9.5 x 115 mm
060L113166
Danfoss
Danfoss KP75 thermostat, 0 to 40 °C, automatic, SPDT gold-plated, room sensor 25 x 78 mm
060L117166
Danfoss

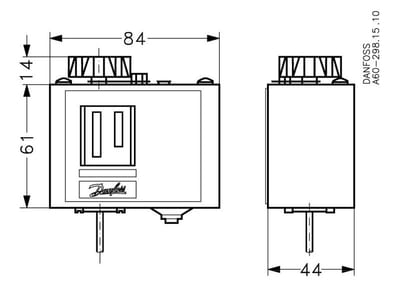

Danfoss KP78 thermostat, 30 to 90 °C, automatic, SPDT, remote bulb 9.5 x 85 mm
060L118466
Danfoss

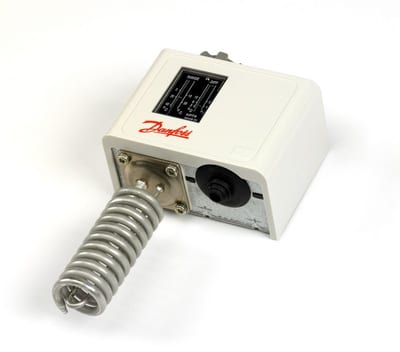

Danfoss KP76 thermostat, 5 to 45 °C, automatic, SPDT, room sensor 25 x 78 mm
