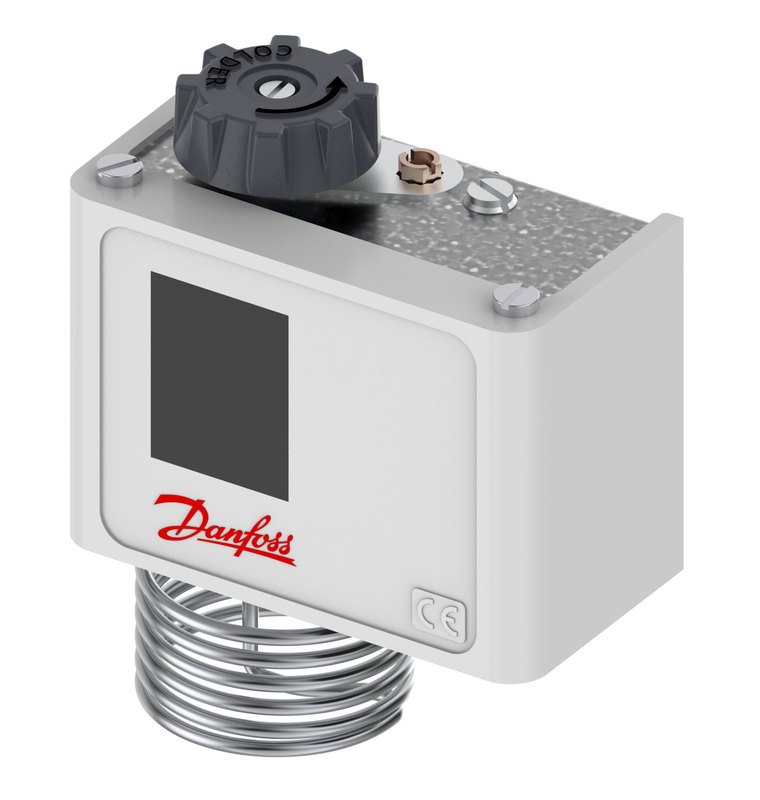

Danfoss KP68 thermostat, -5 to 35 °C, automatic, SPDT, room sensor 40 x 30 mm
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KP68 thermostat, code 060L111166. Sensor (regulating) range -5 to 35 °C (23 to 95 °F) via room sensor 40 x 30 mm. Differential 1.8 to 7 K (max range setting); 4.5 to 25 K (min range setting), adjustable; automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 120 °C. Carries marine type approval (DNV/GL/LR/RINA). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702428014564.
Specifications
- Part number
- 060L111166
- HS code
- 9032.10
- Material
- Room sensor with steel housing
- Temperature range
- -40 to +65 °C (80 °C for max 120 min)
- IP rating
- IP30
Compatibility
KP68 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (-5 to 35 °C) and differential against the set point before ordering.
Standards
Approvals
