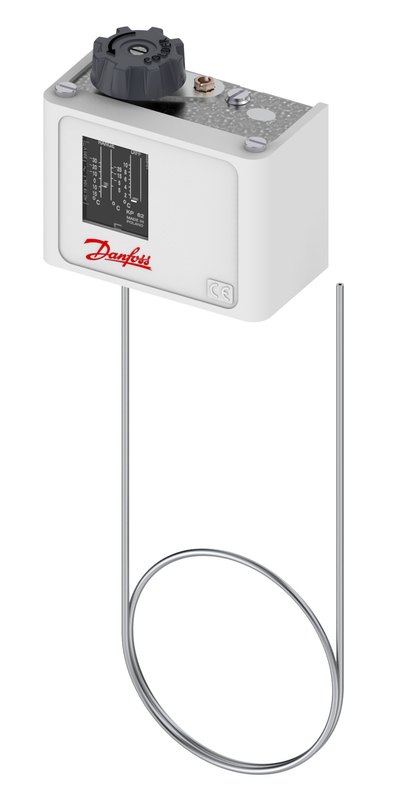

Danfoss KP62 thermostat, -30 to 15 °C, automatic, SPDT, room sensor 40 x 30 mm
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KP62 thermostat, code 060L110666. Sensor (regulating) range -30 to 15 °C (-22 to 59 °F) via room sensor 40 x 30 mm. Differential 1.5 to 7 K (max range setting); 6 to 23 K (min range setting), adjustable; automatic; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min); maximum sensor temperature 120 °C. Carries marine type approval (DNV/BV/GL/LR/RINA/RMRS). For temperature monitoring, control and frost/overheat protection of non-aggressive media. EAN 5702428014533.
Specifications
- Part number
- 060L110666
- HS code
- 9032.10
- Material
- Room sensor with steel housing
- Temperature range
- -40 to +65 °C (80 °C for max 120 min)
- IP rating
- IP30
Compatibility
KP62 temperature switch for HVAC-R temperature regulation and frost/overheat protection. SPDT contact wired NO or NC. Verify regulating range (-30 to 15 °C) and differential against the set point before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- UL
- CSA
- DNV
- BV
- GL
- LR
- RINA
- RMRS
- LVD
- CMIM
