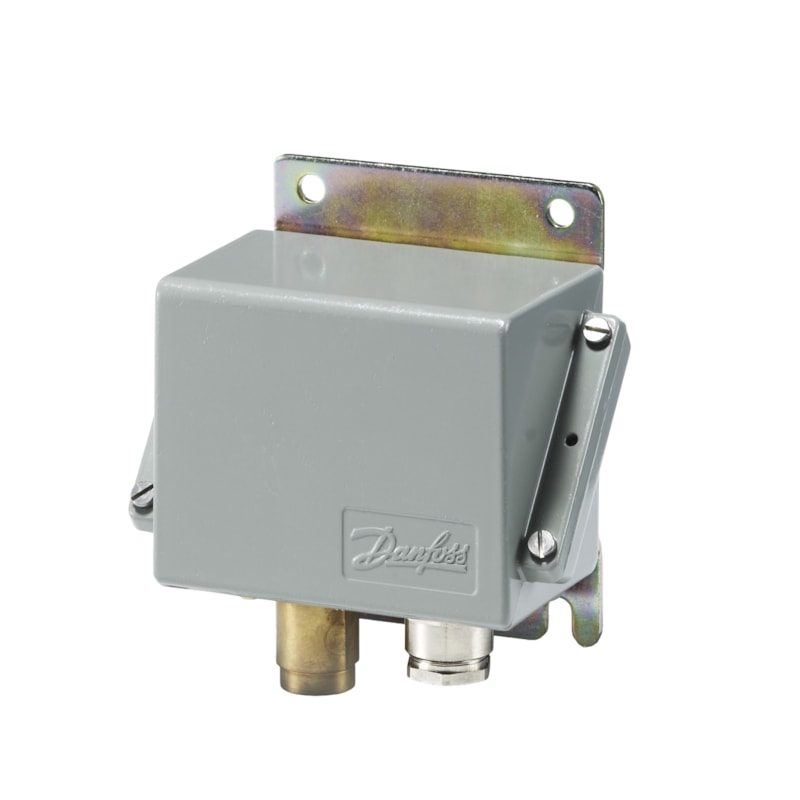

Danfoss CAS145 pressure switch, 4–40 bar (58–580 psig), 0.8–2.4 bar (12–35 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss CAS145 pressure switch, code 060-316166. Regulation range 4–40 bar (58–580 psig) with 0.8–2.4 bar (12–35 psi), adjustable and automatic reset, SPDT snap-action contact system. Connection G 1/4 in (ISO 228-1, female). Max working pressure 120 bar (1740 psig). IP67 enclosure. ABS, BV, DNV, GL, LR, NKK, RINA, RMRS marine type approval. EAN 5702423151677.
Specifications
- Part number
- 060-316166
- HS code
- 9026.20
- Material
- Steel housing; gold-plated SPDT contacts; diaphragm sensing element
- Pressure rating
- max working pressure 120 bar (1740 psig)
- Temperature range
- -40 to +70 °C
- IP rating
- IP67
- Thread standard
- G 1/4 in (ISO 228-1, female)
Compatibility
High static-pressure (120 bar MWP) diaphragm switch for marine and industrial pressure monitoring.
Standards
- IEC 60529 (enclosure IP rating)
- ISO 228-1 (pressure connection thread)
- EU RoHS
Approvals
- CE
- ABS
- BV
- DNV
- GL
- LR
- NKK
- RINA
- RMRS
- EAC
- EU RoHS
