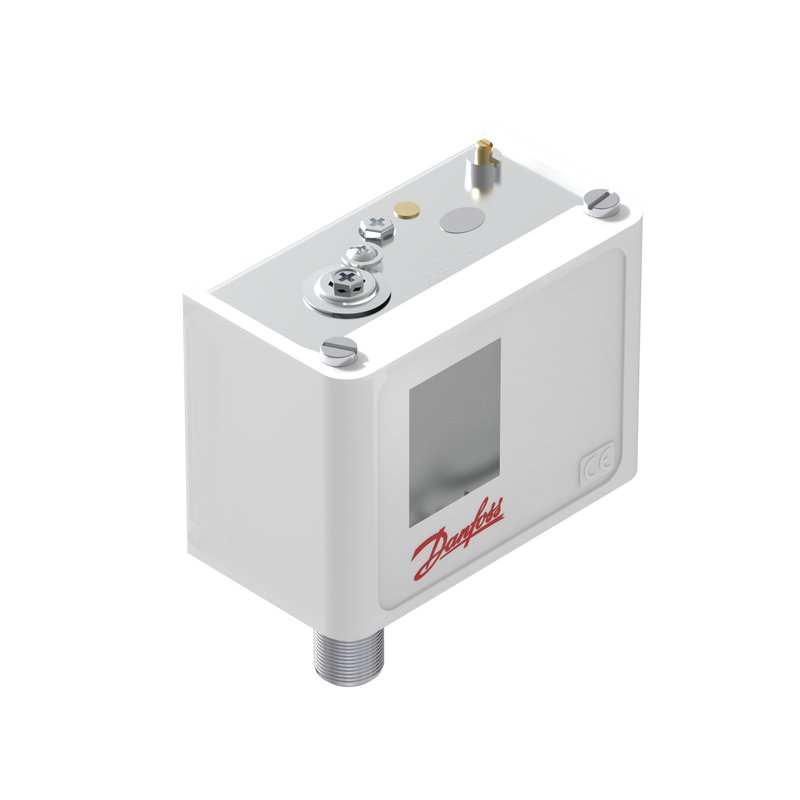

Danfoss KPI35 pressure switch, -0.2–8 bar (6 inHg–116 psig), 0.4–1.5 bar (6–22 psi) differential, automatic reset, SPDT, 1/4-18 NPT, IP30
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KPI35 pressure switch, code 060-500266. Regulation range -0.2–8 bar (6 inHg–116 psig) with 0.4–1.5 bar (6–22 psi), adjustable and automatic reset, SPDT snap-action contact system. Connection 1/4-18 NPT (female). Max working pressure 18 bar (261 psig). IP30 enclosure. RINA type approval. EAN 5702423147311.
Specifications
- Part number
- 060-500266
- HS code
- 9026.20
- Material
- Steel housing; SPDT contacts; bellows sensing element
- Pressure rating
- max working pressure 18 bar (261 psig)
- Temperature range
- -40 to +70 °C
- IP rating
- IP30
- Thread standard
- 1/4-18 NPT (female)
Compatibility
NPT-connection KPI35 low-pressure switch for refrigeration and machinery pressure limiting.
Standards
- IEC 60529 (enclosure IP rating)
- ANSI/ASME B1.20.1 (NPT thread)
- EU RoHS
Approvals
- CE
- UL
- RINA
- EAC
- CCC
- CMIM
- EU RoHS
