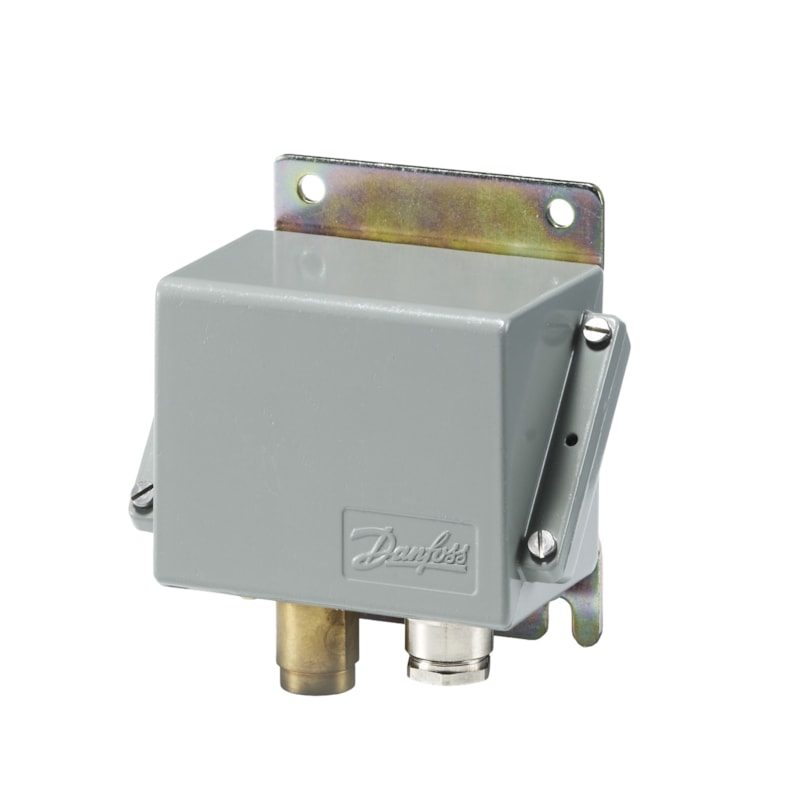

Danfoss CAS133 pressure switch, 0–3.5 bar (0–51 psig), 0.1 bar (1.5 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss CAS133 pressure switch, code 060-315066. Regulation range 0–3.5 bar (0–51 psig) with 0.1 bar (1.5 psi), fixed differential and automatic reset, SPDT snap-action contact system. Pressure connection G 1/4 in (ISO 228-1, female); screwed cable entry, Pg 13.5 (DIN 40430) electrical entry; IP67 enclosure. Max working pressure 10 bar; burst 40 bar. Bellows/diaphragm sensing element. ABS, BV, DNV, GL, LR, NKK, RINA marine type approval. EAN 5702423151653.
Specifications
- Part number
- 060-315066
- HS code
- 9026.20
- Material
- Steel housing; bellows element; low-current SPDT contacts
- Pressure rating
- max working pressure 10 bar; burst 40 bar
- Temperature range
- -40 to +70 °C
- IP rating
- IP67
- Thread standard
- G 1/4 in (ISO 228-1, female)
Compatibility
Automatic-reset CAS133 for marine and industrial pressure control. IP67 marine-approved sealed enclosure.
Standards
- IEC 60529 (enclosure IP rating)
- ISO 228-1 (pressure connection thread)
- EU RoHS
Approvals
- CE
- UL
- DNV
- ABS
- BV
- LR
- GL
- RINA
- EAC
- EU RoHS
