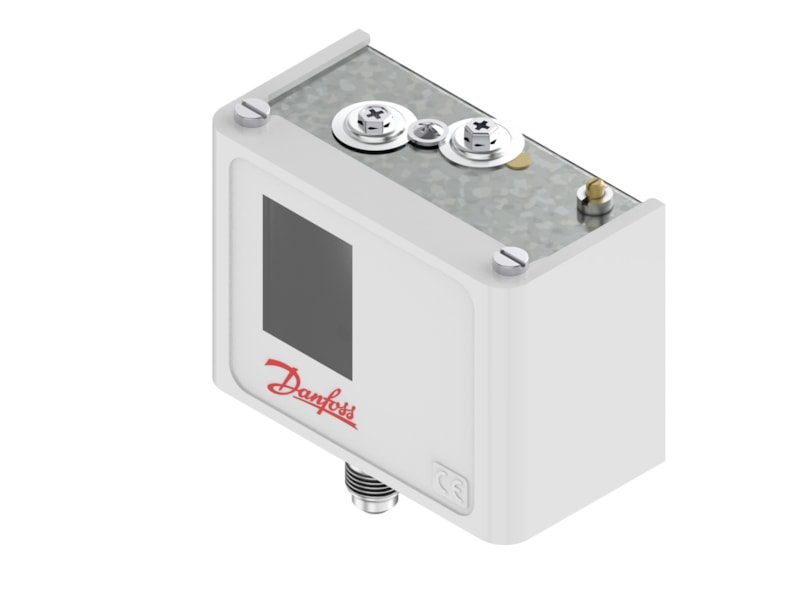

Danfoss KPR1 pressure switch, -0.2 to 8 bar, narrow 0.5-1.5 bar differential, auto reset, SPDT, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPR1 pressure switch, code 060-110766. Regulating range -0.2 to 8 bar with a narrow differential of 0.5 to 1.5 bar, automatic reset, SPDT contact. 1/4 in flare (male) pressure connection, IP30 enclosure, max working pressure 15 bar. KPR is the close-differential member of the KP pressure-switch family used for evaporating-pressure / capacity regulation where a tight on-off band is required. Bellows pressure element. CE / LVD marked.
Technical Specifications
- Type
- KPR1 pressure switch
- Code number
- 060-110766
- Regulating range
- -0.2 to 8 bar
- Differential range
- 0.5 to 1.5 bar
- Reset
- automatic
- Contact system
- SPDT
- Connection
- 1/4 in flare, male
- Max working pressure
- 15 bar
- Enclosure
- IP30
- Approvals
- CE, LVD
- EAN
- 5702428011716
- Product group
- Switches and thermostats
- Max. test pressure
- 261.0 psig
- Max. test pressure Pe
- 18.0 bar
- Ambient temperature range
- -40 °C to 65 °C
- Refrigerants
- R113; R1233zd(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A
- Lubricants compatibility
- Oilfree applications
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.305 kg
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Contact function
- SPDT
- Contact rating
- AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR=36 A, 240 V; LR=48 A, 120 V
- Differential
- 0.50 bar to 1.50 bar
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- Identical product
- 060-518566
- Oil free refrigerants
- R134a; R513A; R515B
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Regulation range
- 6 inHg - 116 psig
- Regulation range Pe
- -0.20 bar to 8.00 bar
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in flare, male
- Pressure Rating
- max working pressure 15 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Evaporating-pressure / capacity regulation requiring a close on-off differential; automatic reset. KPR close-differential variant of KP1.
