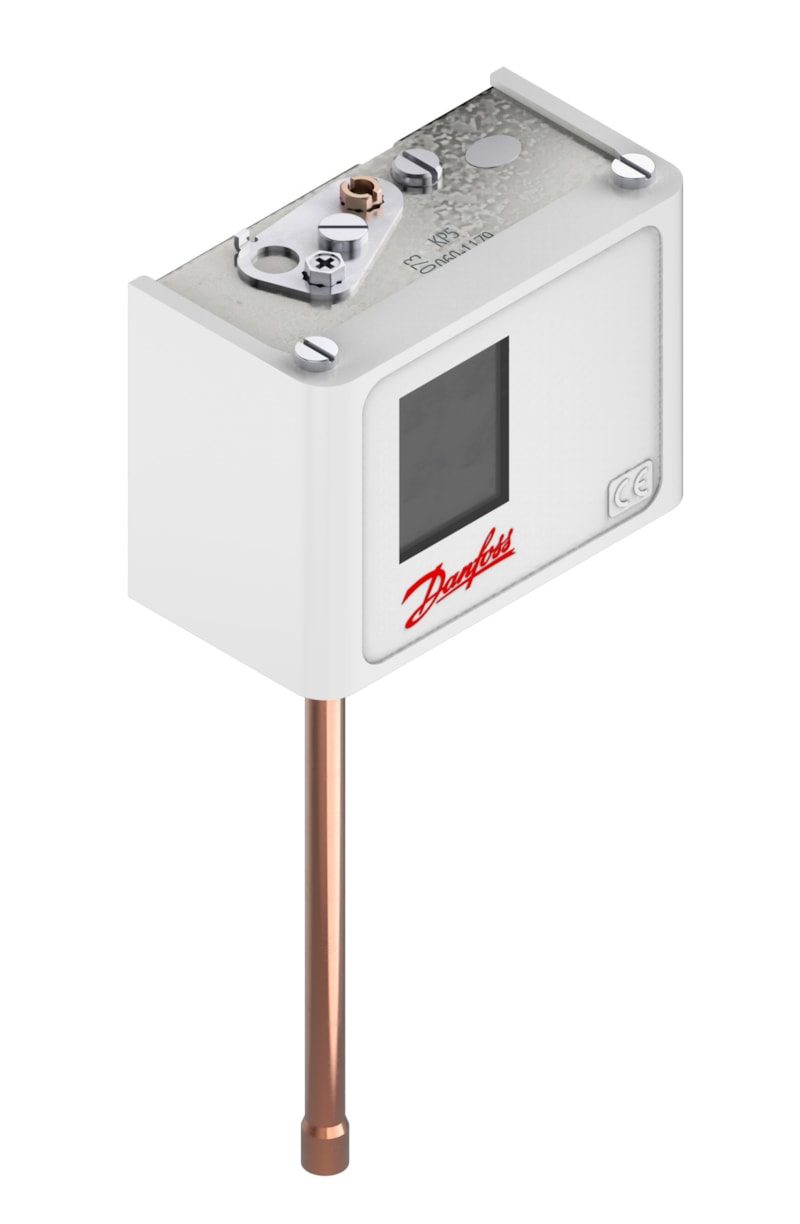

Danfoss KP5 pressure switch, 8 to 32 bar, auto reset, SPDT, 1/4 in ODF solder
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP5 single high-pressure switch (code 060-514066). Regulating range 8 to 32 bar, differential 1.8 to 6 bar, automatic reset, SPDT snap-action contact. 1/4 in ODF solder (female) connection, IP44 enclosure, ambient -40 to +65 °C. Max working pressure 35 bar, max test pressure 35 bar. For high-pressure monitoring and limiting of non-aggressive liquids and gases.
Technical Specifications
- Type
- KP5 single high-pressure switch
- Code number
- 060-514066
- Regulating range
- 8 to 32 bar
- Differential range
- 1.8 to 6 bar
- Max working pressure (PB)
- 35 bar
- Max test pressure (Pe)
- 35 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Connection
- 1/4 in ODF solder (female)
- Enclosure
- IP44
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Pressure element
- bellows
- Product group
- Switches and thermostats
- Max. test pressure
- 510.0 psig
- Max. test pressure Pe
- 35.0 bar
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B
- Lubricants compatibility
- Oilfree applications
- Approval
- BV; CCC; CE; CMIM; DNV; EAC; GL; LLC CDC EURO-TYSK; LR; LVD; RINA; RMRS; RoHS China; c UL us UL873, CS C22.2
- UL approval file name
- E31024
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.295 kg
- EAN
- 5702428016407
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential
- 1.80 bar to 6.00 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- Identical product
- 060-117966
- In scope of WEEE
- Yes
- Oil free refrigerants
- R134a; R513A; R515B
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in ODF solder (female)
- Pressure Rating
- PB 35 bar; max test 35 bar
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
High-pressure switch for monitoring/limiting of non-aggressive media. SPDT contact wired NO or NC. 1/4 in ODF solder (female) connection. Verify range/differential against the set point before ordering.
