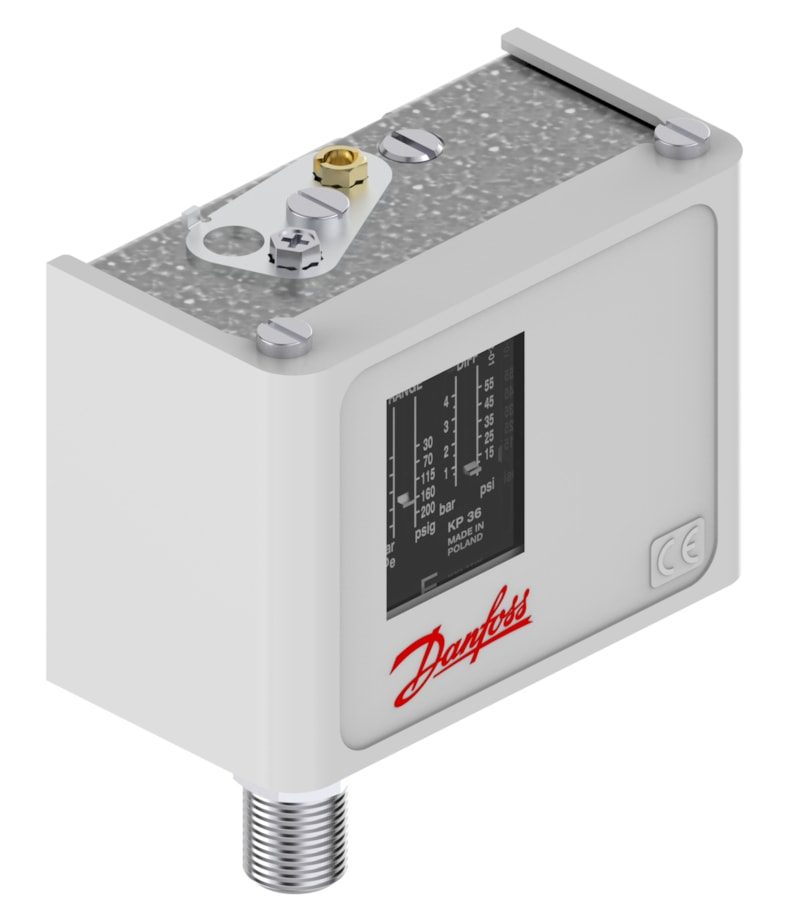

Danfoss KP36 pressure switch, 4 to 12 bar, auto reset, SPDT gold, G1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP36 single-pressure switch (code 060-114466). Regulating range 4 to 12 bar, differential 0.5 to 2 bar, automatic reset, SPDT gold-plated snap-action contact. G1/4 (ISO 228-1) male connection, IP30 enclosure, ambient -40 to +65 °C. Max working pressure 17 bar, max test pressure 22 bar. Gold contact for low-current control circuits.
Technical Specifications
- Type
- KP36 single-pressure switch
- Code number
- 060-114466
- Regulating range
- 4 to 12 bar
- Differential range
- 0.5 to 2 bar
- Max working pressure (PB)
- 17 bar
- Max test pressure (Pe)
- 22 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw), gold-plated
- Connection
- G1/4 (ISO 228-1) male
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Pressure element
- bellows
- Product group
- Switches and thermostats
- Max. test pressure
- 319.0 psig
- Max. test pressure Pe
- 22.0 bar
- Approval
- CCC; CE; CMIM; EAC; LLC CDC EURO-TYSK; LVD; RINA; RMRS; RoHS China; c UL us UL353, CS C22.2; c UL us UL873, CS C22.2
- UL approval file name
- E31024; MH27572
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.3 kg
- EAN
- 5702423148721
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Contact function
- SPDT gold
- Contact rating
- AC15=4 A, 400 V; AC1=10 A, 400 V; AC3=6 A, 400 V; DC13=12 W, 220 V; for gold 1…30 mA, 5...30 V
- Differential
- 0.50 bar to 2.00 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- In scope of WEEE
- Yes
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Regulation range Pe
- 4.00 bar to 12.00 bar
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- G1/4 (ISO 228-1) male
- Pressure Rating
- PB 17 bar; max test 22 bar
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Single-pressure switch for monitoring/limiting of non-aggressive media. Gold-plated SPDT contact wired NO or NC. G1/4 (ISO 228-1) male connection. Verify range/differential against the set point before ordering.
