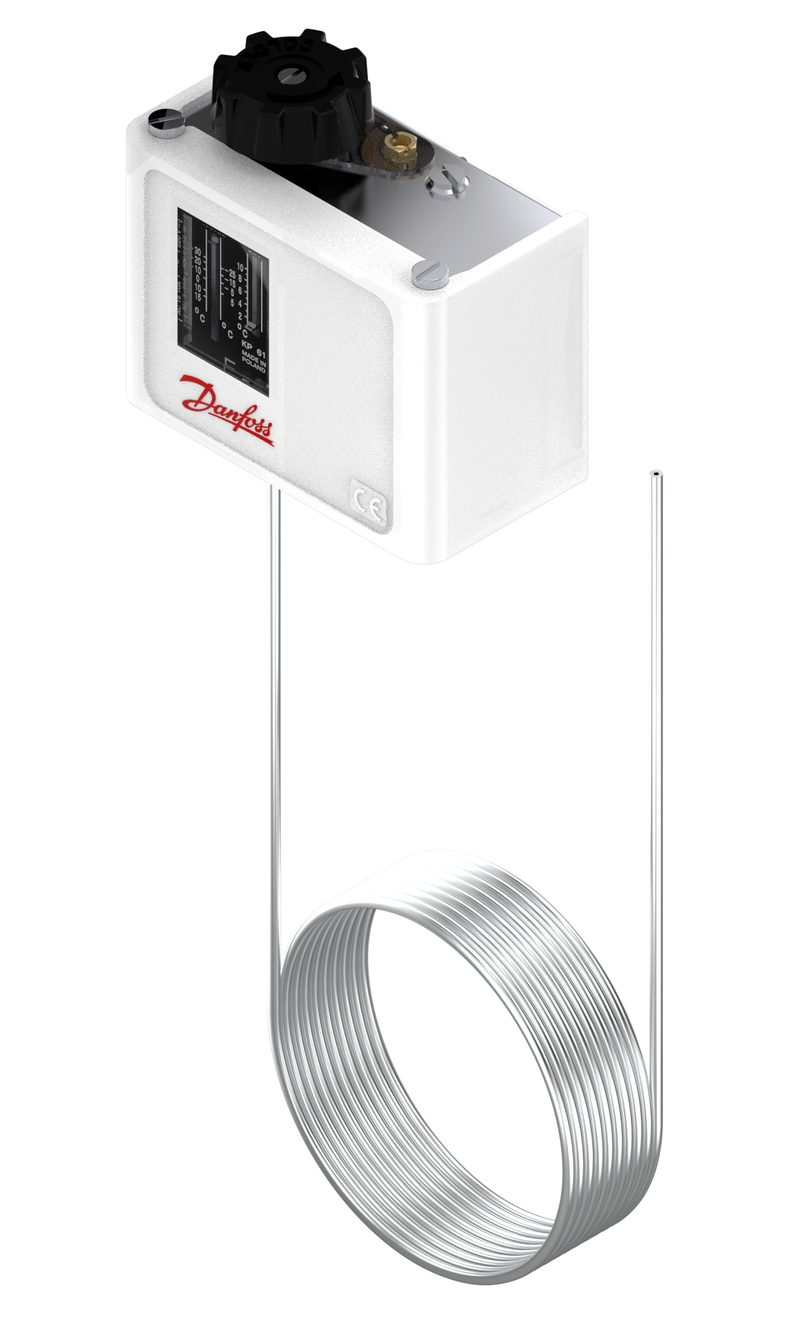

Danfoss KP63 thermostat, -50 to 10 °C, automatic reset, SPDT, capillary sensor 2.5 x 500 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP63 thermostat (code 060L110766). Sensor (regulating) range -50 to 10 °C with a capillary tube sensor 2.5 x 500 mm (Ø x L) and 2000 mm capillary tube. Adjustable differential 2.7 to 8 K at the maximum range setting; automatic reset; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C. Maximum sensor temperature 120 °C. For low-temperature monitoring and control of non-aggressive media.
Technical Specifications
- Type
- KP63 thermostat
- Code number
- 060L110766
- Sensor (regulating) range
- -50 to 10 °C
- Differential
- 2.7 to 8 K (max range setting), adjustable
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Sensor
- capillary tube sensor 2.5 x 500 mm (Ø x L)
- Capillary tube length
- 2000 mm
- Maximum sensor temperature
- 120 °C
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Electrical connection
- rubber cable gland 6-14 mm
- Contact rating
- AC15 10 A 400 V; AC1 16 A 400 V; AC3 16 A 400 V; DC13 12 W 220 V; LR 112 A 400 V
- Approvals
- CE, EAC, CCC, UL (UL873), DNV, BV, GL, LR, RINA, RMRS, LVD
- Product group
- Switches and thermostats
- Max. sensor temperature
- 120 °C
- Temperature range
- -50 °C to 10 °C
- UL approval file name
- E31024
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.366 kg
- EAN
- 5702428014540
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Cap. tube length fraction
- 78 3/4 in
- Charge type
- Vapour
- Contact function
- SPDT
- Diff. @ Max. range setting
- 2.7 K to 8.0 K, 2.7 °C to 8.0 °C
- Diff. @ Min. range setting
- 10.0 K to 70.0 K, 10.0 °C to 70.0 °C
- Differential type
- Adjustable
- Electrical connection size
- 6-14 mm
- Electrical spec. standard
- EN 60947-5
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- Reset function
- Auto
- Sensor size (Ø x L)
- 2.5 x 500 mm
- Sensor type
- Capillary tube sensor
- EU RoHS compliance
- Yes
Standards & Compliance
- Material
- Capillary tube sensor with steel housing
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
Low-temperature capillary-sensor cooling thermostat. SPDT contact wired NO or NC. Verify regulating range and differential against the set point before ordering.
