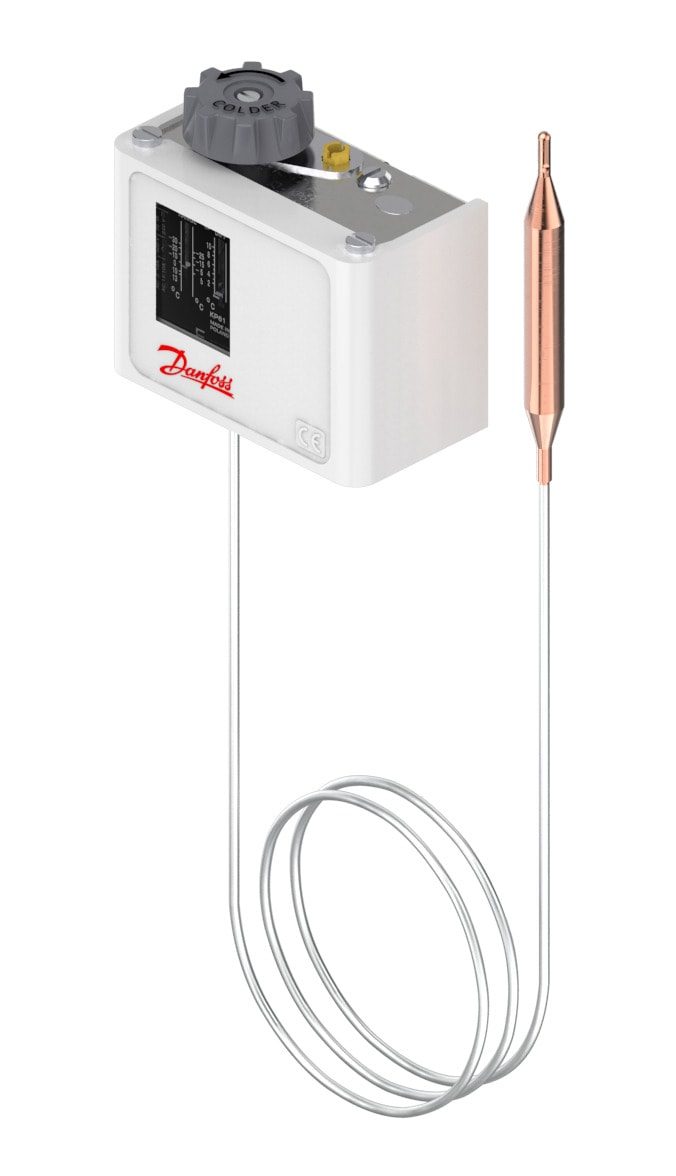

Danfoss KP81 thermostat, 80 to 150 °C, automatic reset, SPDT, remote bulb 9.5 x 85 mm, 3000 mm capillary

Danfoss KP81 thermostat (code 060L118366). Regulating range 80 to 150 °C with a remote bulb sensor 9.5 x 85 mm (Ø x L) and 3000 mm capillary tube. Adjustable differential 6 to 20 K at the minimum setting (7 to 23 K at the maximum setting); automatic reset; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min). Maximum sensor temperature 200 °C. Contact rating AC15 10 A at 400 V, AC1/AC3 16 A at 400 V. For temperature monitoring and control of non-aggressive media.

Type

KP81 thermostat Code number: 060L118366 Regulating range: 80 to 150 °C (176 to 302 °F) Differential: 6 to 20 K (min setting); 7 to 23 K (max setting), adjustable Reset: Automatic Contact system: SPDT (single-pole double-throw) Sensor: remote bulb 9.5 x 85 mm (Ø x L) with 3000 mm capillary tube Maximum sensor temperature: 200 °C Enclosure: IP30 Ambient temperature: -40 to +65 °C Electrical connection: rubber cable gland 6-14 mm Approvals: CE, EAC, CCC, CMIM, UL, CSA, DNV, BV, GL, RINA Product group: Switches and thermostats Max. sensor temperature: 200 °C Temperature range: 80 °C to 150 °C UL approval file name: E31024; MH27572 UL mark: Yes CE mark: Yes REACH candidate-list substances: Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0) Net weight: 0.396 kg EAN: 5702423148776 Amb. Temp. Note: 80 °C/176 °F for max 120 min Cap. tube length fraction: 118 1/8 in Capillary tube length: 3000 mm Charge type: Adsorption Contact function: SPDT Contact rating: AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V Diff. @ Max. range setting: 7.0 K to 23.0 K, 7.0 °C to 23.0 °C Diff. @ Min. range setting: 6.0 K to 20.0 K, 6.0 °C to 20.0 °C Differential type: Adjustable Electrical connection size: 6-14 mm Electrical spec. standard: EN 60947-5 EN 60947 electrical properties: Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 Enclosure rating IP: IP30 Enclosure rating Nema (~): 1 Reset function: Auto Sensor size (Ø x L): 9.5 x 85 mm Sensor type: Remote bulb EU RoHS compliance: Yes

Material

Remote bulb sensor with steel housing

Temperature Range

-40 to +65 °C

IP Rating

IP30

HS Code

9032.10
