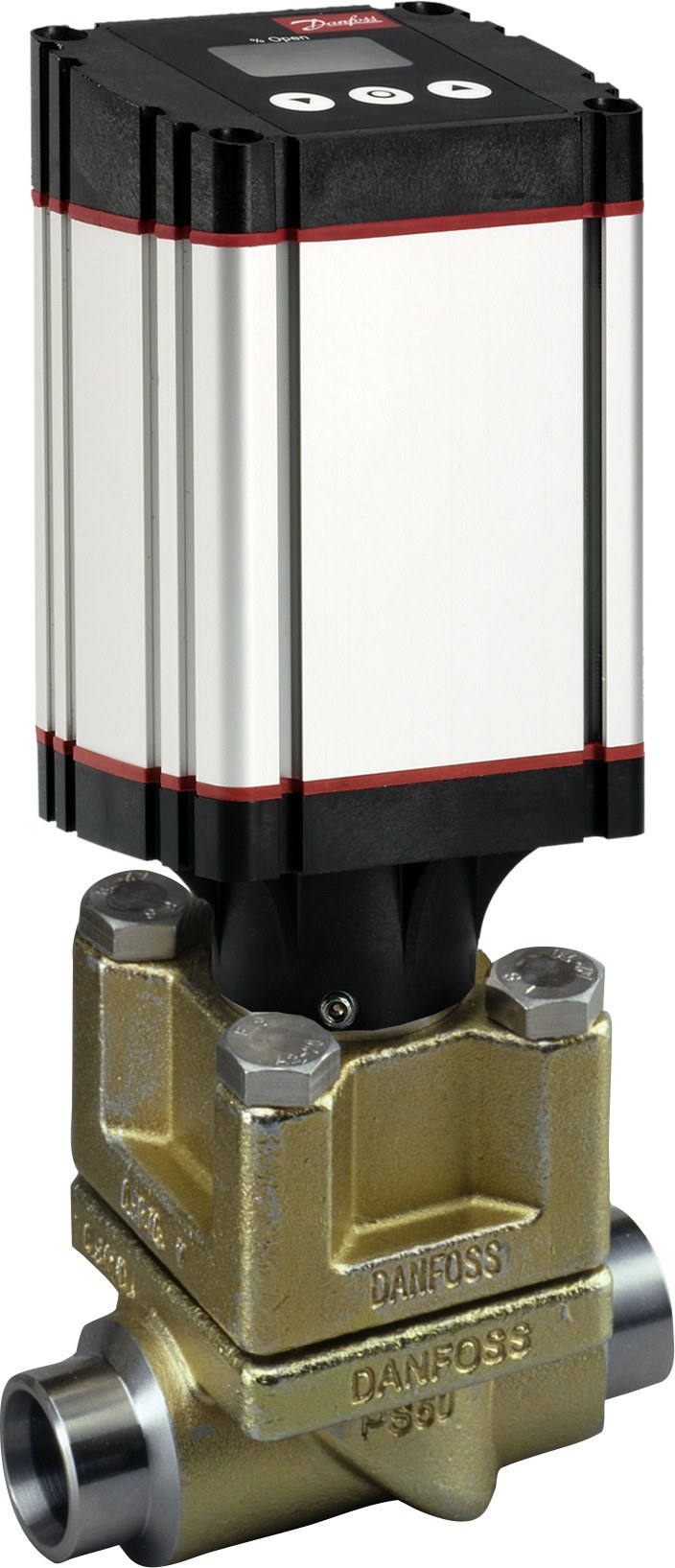

Danfoss ICM 20-C motor-operated valve, DN20 (3/4 in), butt weld, Kv 4.6 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 20-C motor-operated control valve (code 027H1032). Straightway valve, port size DN20 (3/4 in), butt-weld steel connections to EN 10220. Kv 4.6 m³/h (Cv 5.33 gal/min). Steel body with Zn (TLP) surface coating, operated by an ICAD actuator through a magnetic coupling (actuator ordered separately). Maximum working pressure 52 bar; media temperature -60 to +120 °C; open/close time 3 s. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Technical Specifications
- Type
- ICM 20-C motor-operated valve
- Code number
- 027H1032
- Port size
- DN20 (3/4 in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Kv value
- 4.6 m³/h (Cv 5.33 gal/min)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Actuator system
- ICAD motor, magnetic coupling (actuator ordered separately)
- Open/close time
- 3 s
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22, R1234ze(E), R1234yf and others
- PED category
- Art. 4, par. 3 (sound engineering practice)
- Fluid group
- 1
- Approvals
- EAC, UL (Refrigerant Valve), LLC CDC EURO-TYSK
- Compliance
- EU RoHS, China RoHS
- Brand
- ICV Flexline
- Product group
- Press. and temp. regul. valves
- Valve operation
- Motor operated
- Connection material
- Steel
- Connection standard
- EN 10220
- Inlet connection size
- 20.00 mm
- Inlet connection type
- Butt weld
- Outlet connection size
- 20.0 mm
- Outlet connection type
- Butt weld
- Cv value
- 5.330 gal/min
- Max. working pressure
- 52.0 bar
- MaxOPD
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Lubricants compatibility
- Oilfree applications
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- REACH candidate-list substances
- No
- Net weight
- 1.899 kg
- EAN
- 5702428237338
- Flow direction indicator
- Embossed 1-way arrow
- Manual operation option
- Via ICAD setting; Via Multifunction tool
- Oil free refrigerants
- R1234ze(E); R134a
- Top cover
- Actuator
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Motor-operated control valve for industrial refrigeration. Requires an ICAD 600A/1200A actuator (magnetic coupling). Verify Kv value and refrigerant compatibility against your duty before ordering.
