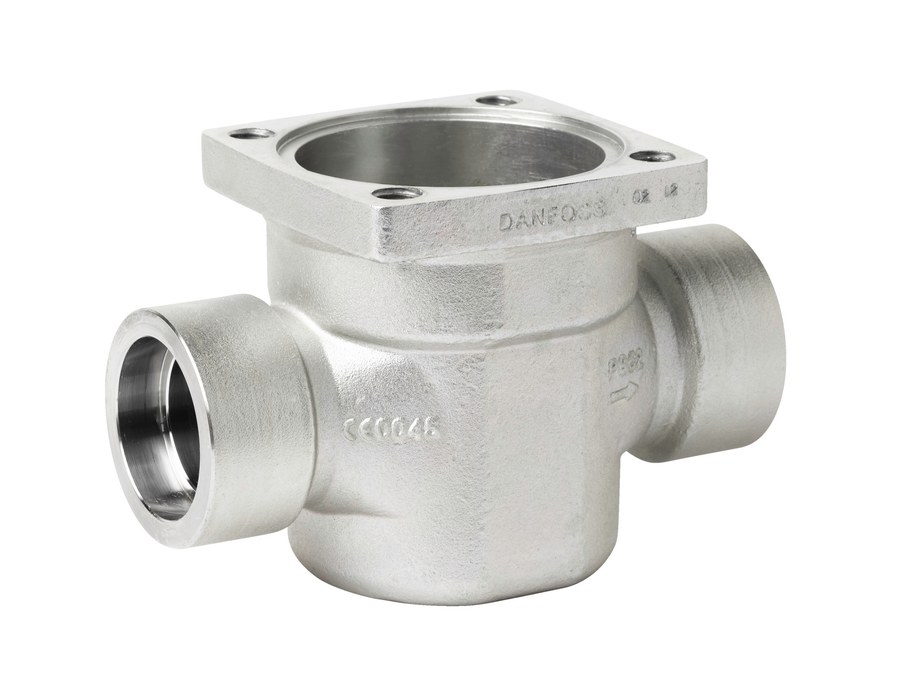

Danfoss ICV 25 multifunction valve body, socket weld, DN25 (1 in) (code 027H2122)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICV 25 multifunction valve body (code 027H2122) for the ICM 25 / ICS 25 Flexline valve. Socket weld steel connections (ASME B16.11), port size DN25 (1 in) / 25 mm. Maximum working pressure 65 bar; media temperature -60 to +120 °C; steel body. The valve body accepts an ICM function module (A/B/C cone) and an ICAD actuator (ordered separately) — Kv depends on the chosen function module. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Specifications
- Part number
- 027H2122
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 °C
Compatibility
Multifunction valve body for industrial refrigeration. Requires an ICM function module (A/B/C cone, which sets Kv) and an ICAD actuator. Socket weld connection (ASME B16.11). Verify refrigerant compatibility and required Kv against your duty before ordering.
Standards
Approvals
