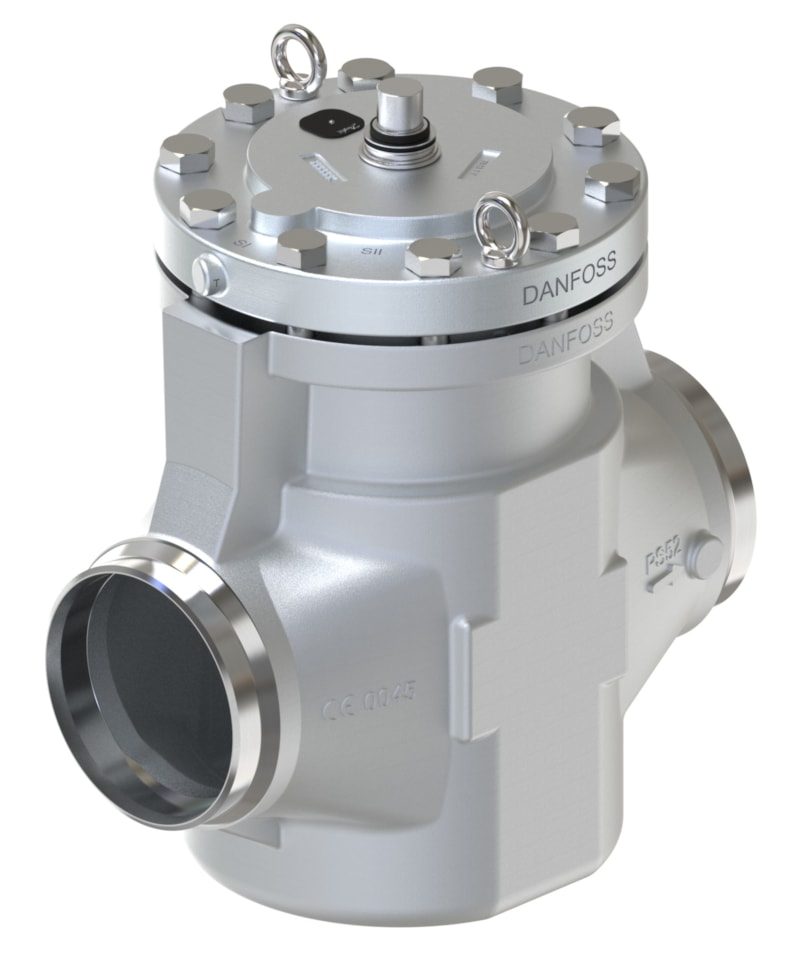

Danfoss ICM 100 motor-operated valve, butt weld, DN100 (4 in)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 100 motor-operated valve (code 027H7131), steel, with butt weld connections (ASME B 36.10M Schedule 40), port size DN100 (4 in) / 100 mm. Straightway flow, Kv 142 m³/h, opening/closing time 25 s. Maximum working pressure 52 bar; media temperature -60 to +120 °C; PED category II. Supplied as valve body with function module; the ICAD 1200A actuator is ordered separately. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Technical Specifications
- Type
- ICM 100 motor-operated valve
- Code number
- 027H7131
- Port size
- DN100 (4 in) / 100 mm
- Direction
- Straightway
- Kv value
- 142 m³/h
- Opening/closing time
- 25 s
- Inlet/outlet connection
- Butt weld, steel (ASME B 36.10M Schedule 40)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 °C (-76 to +248 °F)
- Net weight
- 48.16 kg
- Actuator system
- ICAD 1200A motor, magnetic coupling (ordered separately)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22 and others
- PED category
- II
- Approvals
- CE 0045, EAC, TÜV, UL
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428229739
- Product group
- Press. and temp. regul. valves
- Approval
- CE 0045
- China RoHS compliance
- Yes
- Comments
- ICV 100 ANSI
- Connection Code
- (2002:S40:100)
- Connection material
- Steel
- Connection standard
- ASME B 36.10M SCHEDULE 40
- Cv value [gal/min]
- 164.72 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 142 m³/h
- Lubricants compatibility
- Oilfree applications
- Manual operation option
- Via ICAD setting
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MaxOPD [bar]
- 20 bar
- MaxOPD [psig]
- 271 psig
- Oil free refrigerants
- R1234ze(E)
- Open/close time [s]
- 25 s
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- REACH Candidate List substances
- No
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve operation
- Motor operated
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 40
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Motor-operated multifunction valve for industrial refrigeration. Requires an ICAD 1200A actuator (ordered separately). Butt weld connection (ASME B 36.10M Schedule 40), Kv 142 m³/h. Verify refrigerant compatibility and required Kv against your duty before ordering.
