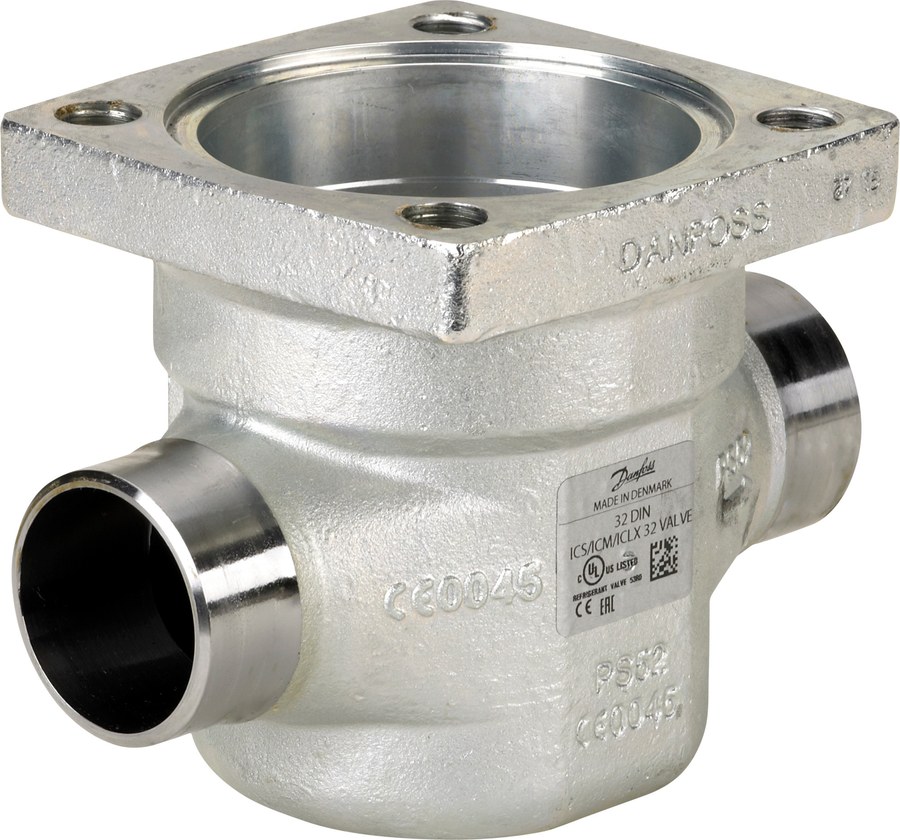

Danfoss ICV 40 multifunction valve body, soldering

Danfoss ICV 40 multifunction valve body (code 027H4124) for the ICM 40 / ICS 40 / ICLX 40 Flexline valve. Soldering steel connections (ASME B 16.22); Connection size: 42 mm tube OD (1 5/8 in). Maximum working pressure 65 bar; media temperature -60 to +120 °C; steel body. The valve body accepts an ICM function module (A/B/C cone) and an ICAD actuator (ordered separately) — Kv depends on the chosen function module. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).

Type

ICV 40 multifunction valve body

Code number

027H4124

Connection size

42 mm tube OD (1 5/8 in)

Direction

Straightway

Inlet/outlet connection

Soldering, steel (ASME B 16.22)

Body material

Steel

Maximum working pressure

65 bar (943 psig)

Media temperature range

-60 to +120 °C (-76 to +248 °F)

Net weight

3.176 kg

Function module

ICM A/B/C cone ordered separately (sets Kv)

Actuator system

ICAD motor, magnetic coupling (ordered separately)

Refrigerants

R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22 and others

Approvals

EAC

Compliance

EU RoHS, China RoHS

EAN

5702428242745

Product group

Multifunction valves

Approval

EAC

China RoHS compliance

Yes

Connection Code

(3002:X:41)

Connection material

Steel

Connection size [in]

1 5/8 in

Connection size [mm]

42 mm

Connection standard

ASME B 16.22

Connection type

Soldering

EU RoHS compliance

Yes

Flow direction indicator

Embossed 1-way arrow

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

REACH Candidate List substances

No

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Used for product

ICLX 40

Valve operation

Function module

Material

Steel

Pressure Rating

65 bar

Temperature Range

-60 to +120 °C

HS Code

8481.80
