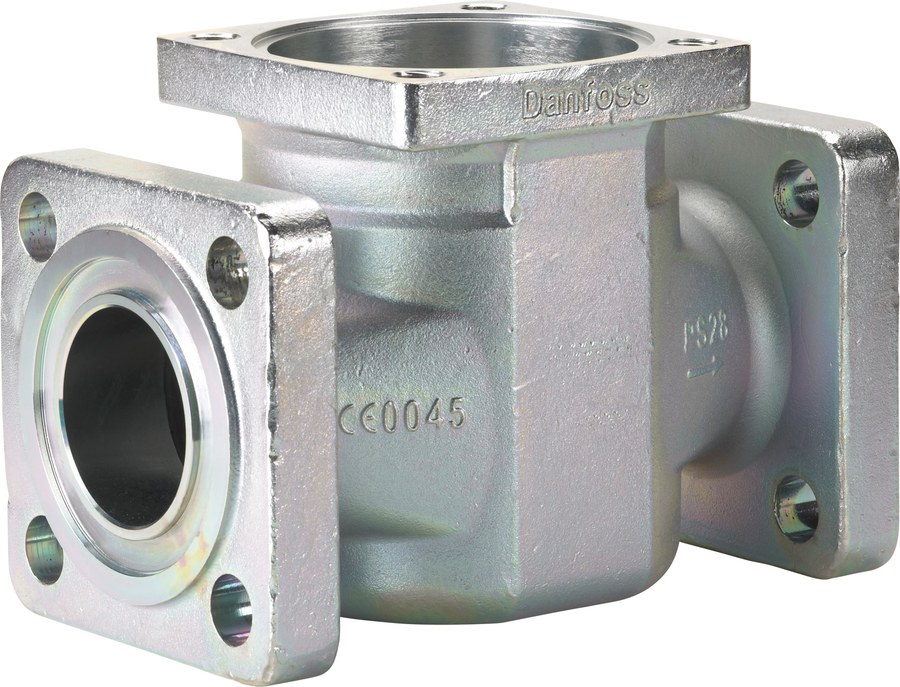

Danfoss ICV 65 HA4A multifunction valve body, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 65 HA4A multifunction valve body (code 027H6129) for the ICS 65 / ICLX 65 / ICM 65 Flexline valve. Flange steel connections (customer specification). HA4A variant. Maximum working pressure 52 bar (754 psig); media temperature -60 to +120 °C; steel body. The valve body accepts an ICM function module (A/B/C cone) and an ICAD actuator (ordered separately) — Kv depends on the chosen function module. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Technical Specifications
- Type
- ICV 65 HA4A multifunction valve body
- Code number
- 027H6129
- Direction
- Straightway
- Inlet/outlet connection
- Flange, steel (customer specification)
- Flange
- HA4A flanges (PM retrofit)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 °C (-76 to +248 °F)
- Function module
- ICM A/B/C cone ordered separately (sets Kv)
- Actuator system
- ICAD motor, magnetic coupling (ordered separately)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22 and others
- Approvals
- EAC
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428898720
- Net weight
- 0.007 Kilogram
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection material
- Steel
- Connection standard
- CUST. SPEC.
- Connection type
- Flange
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Further information
- PM retrofit, HA4A flanges
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICLX 65
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Multifunction valve body for industrial refrigeration. Requires an ICM function module (A/B/C cone, which sets Kv) and an ICAD actuator. Flange connection (customer specification). Verify refrigerant compatibility and required Kv against your duty before ordering.
