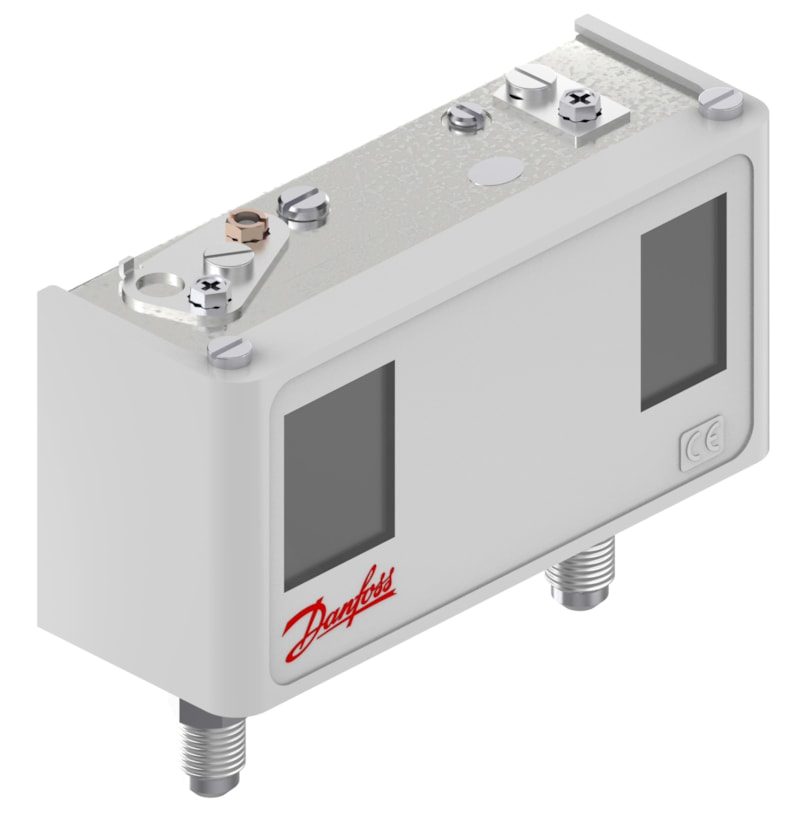

Danfoss KP15 dual-pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto reset, SPDT+SPST(NO)
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP15 dual (combined low- and high-) pressure switch, code 060-126566. LP regulating range -0.2 to 7.5 bar (differential 0.7-4 bar); HP regulating range 8 to 32 bar (differential 4 bar). Automatic reset on both sides. Contact system SPDT+SPST(NO) — a separate normally-open auxiliary contact in addition to the SPDT change-over. 1/4 in flare (male, DIN 8906) connection. Combines low-suction-pressure and high-discharge-pressure protection of a refrigeration or air-conditioning compressor in a single unit. Distinct from the SPDT-only KP15 060-124166 by its added SPST(NO) auxiliary contact.
Specifications
- Part number
- 060-126566
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; two bellows pressure elements
- Pressure rating
- max test 20 bar (LP) / 35 bar (HP)
- Temperature range
- -40 to +65 °C
- IP rating
- IP44
- Thread standard
- 1/4 in flare (SAE 45°) connection
Compatibility
Refrigeration/AC combined LP + HP protection in a single switch; automatic reset on both sides. Carries an extra SPST(NO) auxiliary contact versus the SPDT-only KP15 060-124166. Verify LP and HP set points and contact arrangement before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
- CE
- UL (E31024)
- BV
- DNV
- GL
- LR
- RINA
- EU RoHS
