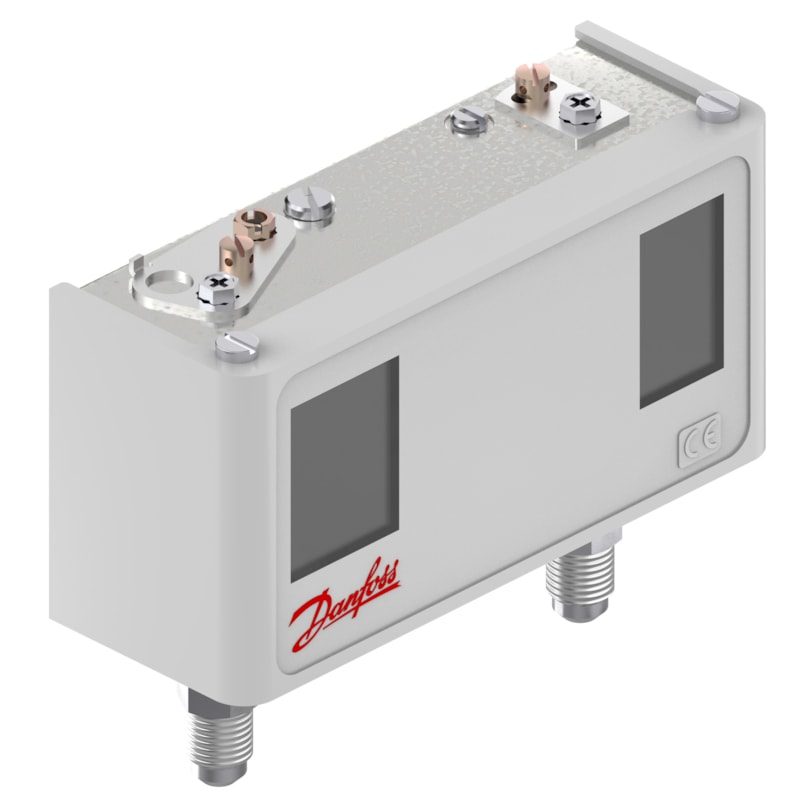

Danfoss KP17W dual-pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto reset, SPDT+SPST(NO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP17W dual (combined low- and high-) pressure switch, code 060-127566. LP regulating range -0.2 to 7.5 bar (differential 0.7-4 bar); HP regulating range 8 to 32 bar (differential 4 bar). Automatic reset on both sides. Contact system SPDT+SPST(NO) — a separate normally-open auxiliary contact in addition to the SPDT change-over. 1/4 in flare (male, DIN 8906) connection. Combined compressor low- and high-pressure protection with an auxiliary signal contact. Distinct from the manual-HP-reset KP17B 060-126866.
Technical Specifications
- Type
- KP17W dual (LP + HP) pressure switch
- Code number
- 060-127566
- LP regulating range
- -0.2 to 7.5 bar (differential 0.7-4 bar)
- HP regulating range
- 8 to 32 bar (differential 4 bar)
- Reset
- automatic (both LP and HP)
- Contact system
- SPDT+SPST(NO)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; AC-3 16 A/400 V; DC-13 12 W/220 V; LR 112 A/400 V
- Connection
- 1/4 in flare (male, DIN 8906)
- Pressure
- regulating -0.2 to 7.5 bar (LP) / 8 to 32 bar (HP)
- Enclosure
- IP44
- Ambient temperature
- -40 to +65 °C
- EAN
- 5702422016663
- Approvals (per Danfoss store)
- CE, UL873, CSA C22.2, BV, CCC, DNV, EAC, GL, LR, LVD, PED, RINA, RMRS, China RoHS, EU RoHS
- Net weight
- 0.489 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT+SPST(NO)
- Contact rating
- AC15=10 A, 400 V
- Differential left side [bar] [max]
- 4 bar
- Differential left side [bar] [min]
- 0.7 bar
- Differential left side [psi] [max]
- 58 psi
- Differential left side [psi] [min]
- 10 psi
- Differential right side [bar]
- 4 bar
- Differential right side [psi]
- 58 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Identical product
- 060-518666
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max.test press.left side[bar]
- 20 bar
- Max.test press.right side[bar]
- 35 bar
- MWP left side [bar] Pe
- 17 bar
- MWP left side [psig] Pe
- 245 psig
- MWP right side [bar] Pe
- 32 bar
- MWP right side [psig] Pe
- 464 psig
- Oil free refrigerants
- R134a
- Other RoHS documentation
- Saudi Arabia RoHS
- PED category
- IV
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation left side [bar]Pe [max]
- 7.5 bar
- Regulation left side [bar]Pe [min]
- -0.2 bar
- Regulation left side range Pe
- 6 inHg - 108 psig
- Regulation right side [bar]Pe [max]
- 32 bar
- Regulation right side [bar]Pe [min]
- 8 bar
- Regulation right side [psig]Pe [max]
- 464 psig
- Regulation right side [psig]Pe [min]
- 116 psig
- Reset function, left side
- Auto
- Reset function, right side
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; two bellows pressure elements
- Thread Standard
- 1/4 in flare (SAE 45°) connection
- Pressure Rating
- regulating -0.2 to 7.5 bar (LP) / 8 to 32 bar (HP)
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC combined LP + HP protection; automatic reset on both sides with an added SPST(NO) auxiliary contact. Distinct from the manual-HP-reset KP17B 060-126866. Verify set points and contact arrangement before ordering.
