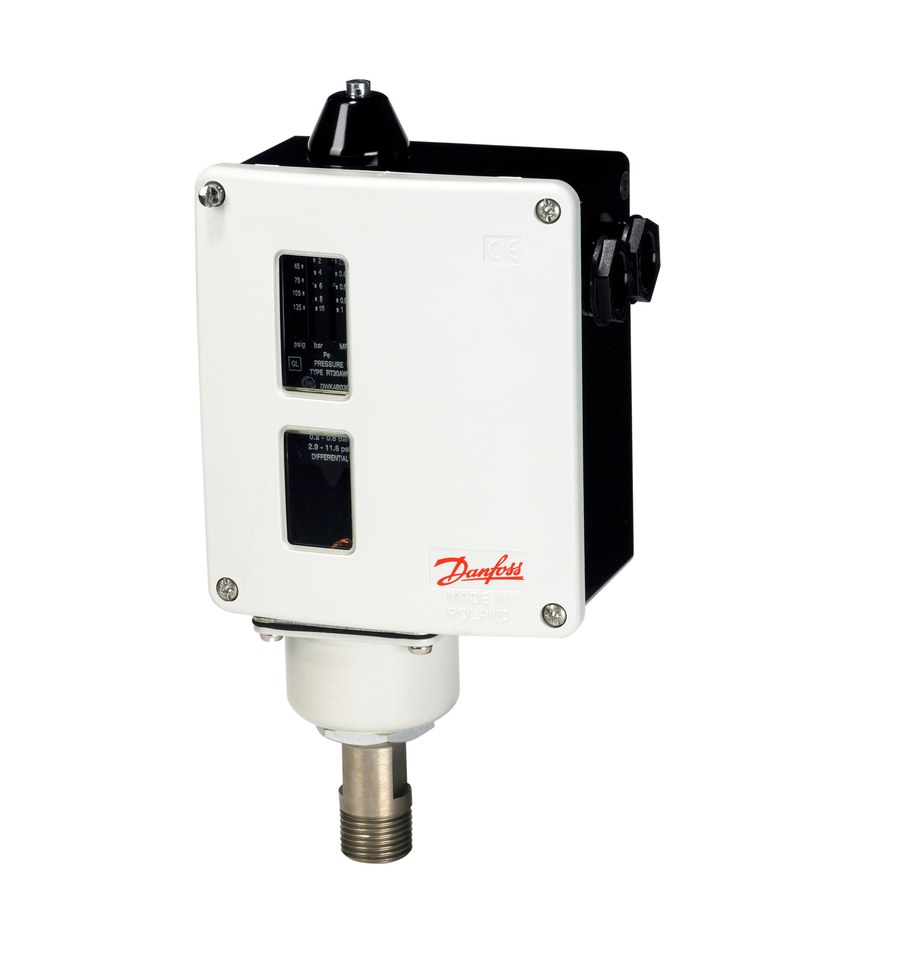

Danfoss RT200L Pressure Switch 0.2 to 6 bar SPDT Auto Reset
Part number017L003266Item numberDANFOSS-017L003266EAN / GTIN5702428042611HS code9032.20
EN 60947-5
IPIP66MaterialBellows sensing elementCE, EAC, CCC, RMRS, LVD
Sensors & Instrumentation
Pressure Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT200L mechanical pressure switch with single-pole double-throw (SPDT) neutral-zone contact and auto reset. Regulating range 0.2 to 6 bar; contact differential 0.25 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017L003266.
Technical Specifications
- Brand
- Danfoss
- Model
- RT200L pressure switch
- Code number
- 017L003266
- Regulating range (Pe)
- 0.2 to 6 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT (single-pole double-throw, neutral zone)
- Reset
- Auto
- Differential
- 0.25 bar
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Maximum test pressure
- 25 bar
- EAN
- 5702428042611
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC, CCC, RMRS, LVD
- Net weight
- 0.88 Kilogram
- Type
- RT200L
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.25 bar
- Contact rating
- AC15=3 A, 400 V
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. neutral zone [bar]
- 0.7 bar
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 363 psig
- Max. Working Pressure [bar]
- 22 bar
- Max. Working Pressure [psig]
- 320 psig
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Regulation range [bar] Pe [max]
- 6 bar
- Regulation range [bar] Pe [min]
- 0.2 bar
- Regulation range [psig] Pe [max]
- 87 psig
- Regulation range [psig] Pe [min]
- 2.9 psig
- Reset function
- Auto
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 22 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CE, EAC, CCC, RMRS, LVD
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
