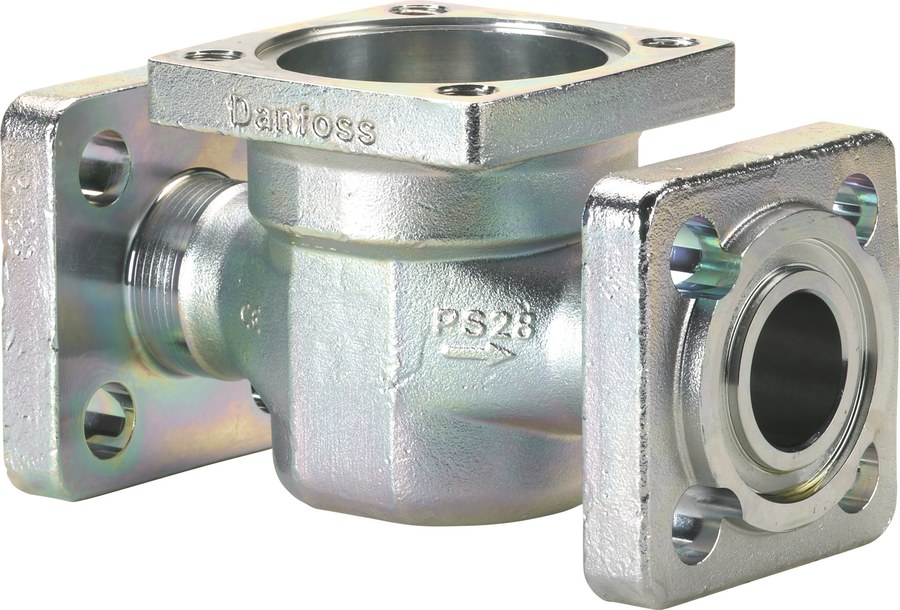

Danfoss ICV 32 PM multifunction valve body, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 32 PM multifunction valve body (code 027H3129) for the ICM 32 / ICLX 32 / ICS 32 Flexline valve. Flange steel connections (customer specification). PM variant. Maximum working pressure 28 bar (406 psig); media temperature -60 to +120 °C; steel body. The valve body accepts an ICM function module (A/B/C cone) and an ICAD actuator (ordered separately) — Kv depends on the chosen function module. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Technical Specifications
- Type
- ICV 32 PM multifunction valve body
- Code number
- 027H3129
- Direction
- Straightway
- Inlet/outlet connection
- Flange, steel (customer specification)
- Body material
- Steel
- Maximum working pressure
- 28 bar (406 psig)
- Media temperature range
- -60 to +120 °C (-76 to +248 °F)
- Net weight
- 3.972 kg
- Function module
- ICM A/B/C cone ordered separately (sets Kv)
- Actuator system
- ICAD motor, magnetic coupling (ordered separately)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22 and others
- Approvals
- EAC
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428869300
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection material
- Steel
- Connection standard
- CUST. SPEC.
- Connection type
- Flange
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Further information
- PM retrofit
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 406 psig
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICLX 32
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 28 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Multifunction valve body for industrial refrigeration. Requires an ICM function module (A/B/C cone, which sets Kv) and an ICAD actuator. Flange connection (customer specification). Verify refrigerant compatibility and required Kv against your duty before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICV 65 HA4A multifunction valve body, flange
027H6129
Danfoss
Danfoss KP15 dual-pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto reset, SPDT+SPST(NO)
060-126566
Danfoss
Danfoss KP17B dual-pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, HP manual (max) reset, SPDT
060-126866
Danfoss
Danfoss KP17W dual-pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto reset, SPDT+SPST(NO)
060-127566
Danfoss
Danfoss RT260A Differential Pressure Switch 0.5 to 6 bar SPDT Auto Reset
017D002366
Danfoss
Danfoss RT1A Pressure Switch -0.8 to 5 bar SPDT Manual Min Reset (017-500266)
Danfoss
Danfoss RT200L Pressure Switch 0.2 to 6 bar SPDT Auto Reset
017L003266
Danfoss
Danfoss DML 032 filter drier
023Z5035
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 027H3129?
- 027H3129 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 027H3129.
- What is the HS code for 027H3129?
- The customs tariff (HS) code for 027H3129 is 8481.80.
- Who manufactures 027H3129?
- 027H3129 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 027H3129?
- Yes — the 027H3129 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 027H3129?
- The minimum order quantity is 1.
- Is 027H3129 available?
- Yes — 027H3129 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
