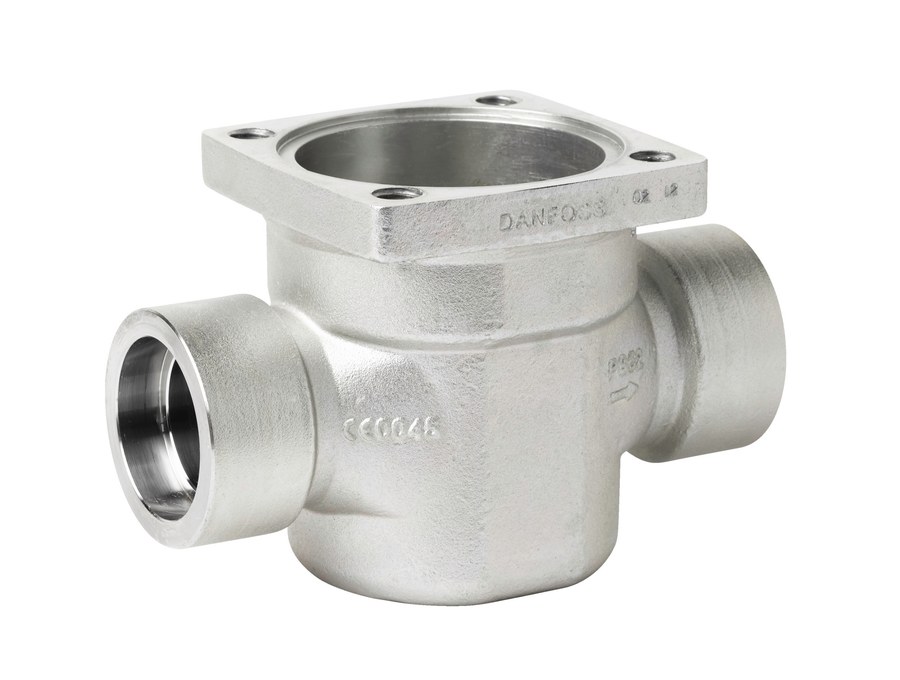

Danfoss ICV 25 multifunction valve body, npt, DN25 (1 in)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 25 multifunction valve body (code 027H2127) for the ICM 25 / ICS 25 Flexline valve. NPT steel connections (ANSI/ASME B1.20.1), port size DN25 (1 in) / 25 mm. Maximum working pressure 65 bar; media temperature -60 to +120 °C; steel body. The valve body accepts an ICM function module (A/B/C cone) and an ICAD actuator (ordered separately) — Kv depends on the chosen function module. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Technical Specifications
- Type
- ICV 25 multifunction valve body
- Code number
- 027H2127
- Port size
- DN25 (1 in) / 25 mm
- Direction
- Straightway
- Inlet/outlet connection
- NPT, steel (ANSI/ASME B1.20.1)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to +248 °F)
- Net weight
- 1.496 kg
- Function module
- ICM A/B/C cone ordered separately (sets Kv)
- Actuator system
- ICAD motor, magnetic coupling (ordered separately)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22 and others
- Approvals
- EAC
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428242967
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection Code
- (2020:P115:25)
- Connection Internal/External
- Internal
- Connection material
- Steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Connection standard
- ANSI/ASME B1.20.1
- Connection type
- NPT
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICM 25
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Multifunction valve body for industrial refrigeration. Requires an ICM function module (A/B/C cone, which sets Kv) and an ICAD actuator. NPT connection (ANSI/ASME B1.20.1). Verify refrigerant compatibility and required Kv against your duty before ordering.
