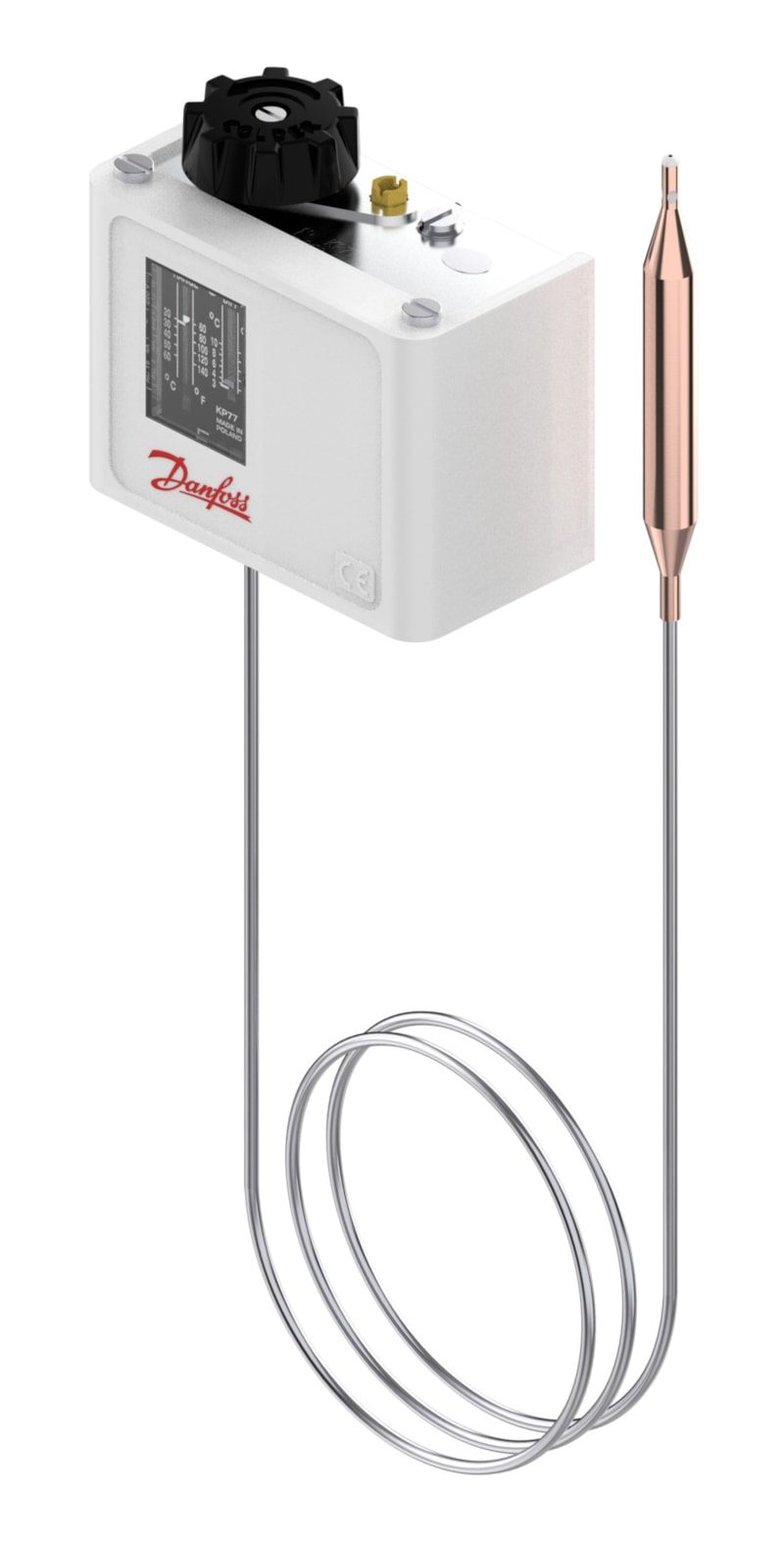

Danfoss KP79 thermostat, 50 to 100 °C, automatic reset, SPDT, remote bulb with 2000 mm capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP79 thermostat (code 060L112666). Regulating range 50 to 100 °C with a remote bulb sensor and 2000 mm capillary tube. Adjustable differential 5 to 15 K; automatic reset; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C. Maximum sensor temperature 150 °C. For temperature monitoring and control of non-aggressive media.
Technical Specifications
- Type
- KP79 thermostat
- Code number
- 060L112666
- Regulating range
- 50 to 100 °C (122 to 212 °F)
- Differential
- 5 to 15 K, adjustable
- Reset
- Automatic
- Contact system
- SPDT (single-pole double-throw)
- Sensor
- remote bulb with 2000 mm capillary tube
- Maximum sensor temperature
- 150 °C
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Electrical connection
- rubber cable gland 6-14 mm
- Approvals
- CE, EAC, CCC, UL, CSA, DNV, BV, GL, RINA, RMRS, LVD, CMIM
- Product group
- Switches and thermostats
- Max. sensor temperature
- 150 °C
- Temperature range
- 50 °C to 100 °C
- UL approval file name
- E31024; MH27572
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.369 kg
- EAN
- 5702423148653
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Cap. tube length fraction
- 78 3/4 in
- Capillary tube length
- 2000 mm
- Charge type
- Adsorption
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Diff. @ Max. range setting
- 5.0 K to 15.0 K, 5.0 °C to 15.0 °C
- Diff. @ Min. range setting
- 5.0 K to 15.0 K, 5.0 °C to 15.0 °C
- Differential type
- Adjustable
- Electrical connection size
- 6-14 mm
- Electrical spec. standard
- EN 60947-5
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- Reset function
- Auto
- Sensor size (Ø x L)
- 9.5 x 85 mm
- Sensor type
- Remote bulb
- EU RoHS compliance
- Yes
Standards & Compliance
- Material
- Remote bulb sensor with steel housing
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
Remote-bulb thermostat for temperature monitoring/control. SPDT contact wired NO or NC. Verify regulating range and differential against the set point before ordering.
