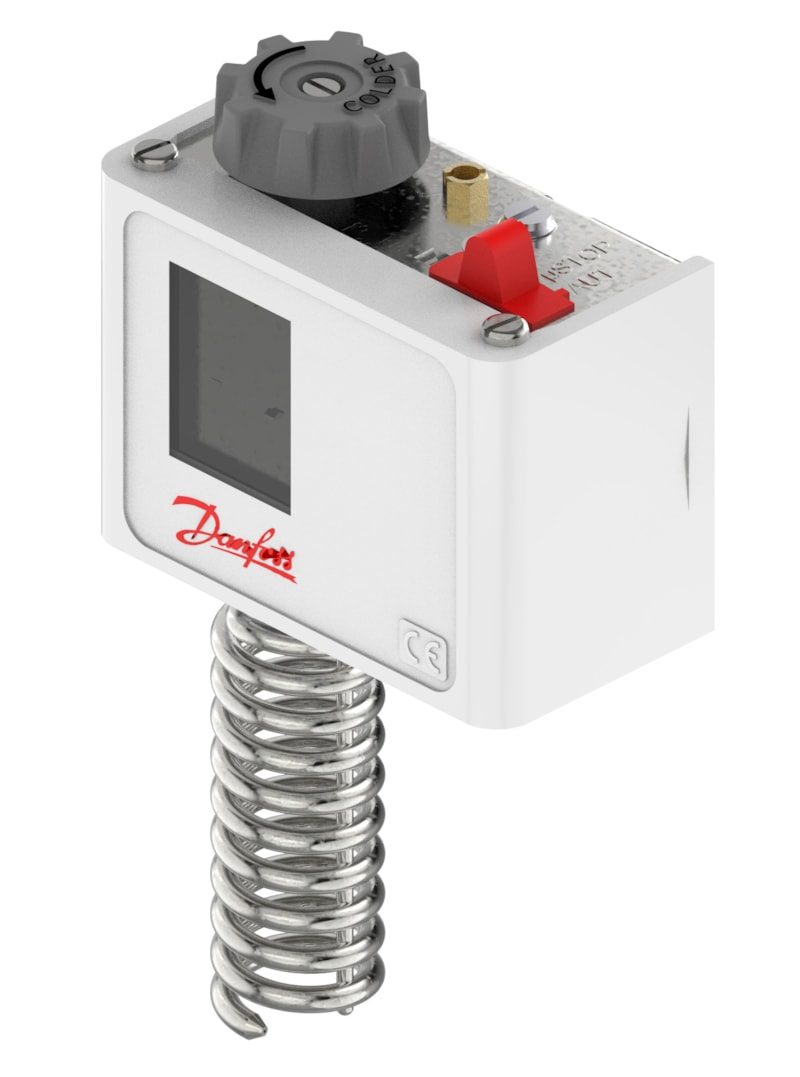

Danfoss KP62 thermostat, -30 to 15 °C, automatic reset, SPDT, room sensor 25 x 78 mm

Danfoss KP62 thermostat (code 060L111066). Sensor (regulating) range -30 to 15 °C with a room sensor 25 x 78 mm. Adjustable differential 2 to 8 K at the maximum range setting (5 to 20 K at the minimum range setting); automatic reset; SPDT (single-pole double-throw) snap-action contact. Enclosure IP30, ambient -40 to +65 °C (80 °C for max 120 min). For room/air temperature monitoring and control of non-aggressive environments.

Type

KP62 thermostat Code number: 060L111066 Sensor (regulating) range: -30 to 15 °C (-22 to 59 °F) Differential: 2 to 8 K (max range setting); 5 to 20 K (min range setting), adjustable Reset: Automatic Contact system: SPDT (single-pole double-throw) Sensor: room sensor 25 x 78 mm Enclosure: IP30 Ambient temperature: -40 to +65 °C (80 °C for max 120 min) Electrical connection: rubber cable gland 6-14 mm Approvals: CE, EAC, CCC, UL (UL873), CSA (C22.2), DNV, BV, GL, LR, RINA, RMRS, LVD Product group: Switches and thermostats Max. sensor temperature: 80 °C Temperature range: -30 °C to 15 °C UL approval file name: E31024 UL mark: Yes CE mark: Yes REACH candidate-list substances: Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0) Net weight: 0.446 kg EAN: 5702428014847 Amb. Temp. Note: 80 °C/176 °F for max 120 min Charge type: Adsorption Contact function: SPDT Contact rating: AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V Diff. @ Max. range setting: 2.0 K to 8.0 K, 2.0 °C to 8.0 °C Diff. @ Min. range setting: 5.0 K to 20.0 K, 5.0 °C to 20.0 °C Differential type: Adjustable Electrical connection size: 6-14 mm Electrical spec. standard: EN 60947-5 EN 60947 electrical properties: Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 Enclosure rating IP: IP30 Enclosure rating Nema (~): 1 Equipment: Top plate; µ stop Other RoHS documentation: Saudi Arabia RoHS Parts included: Wall bracket Reset function: Auto Sensor size (Ø x L): 25 x 78 mm Sensor type: Room sensor EU RoHS compliance: Yes

Material

Room-mounted sensor with steel housing

Temperature Range

-40 to +65 °C (80 °C for max 120 min)

IP Rating

IP30

HS Code

9032.10
